Manufacturer:
ams OSRAM

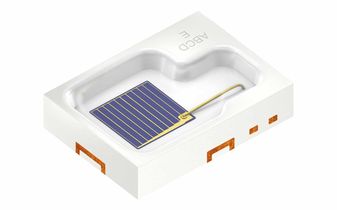

SFH 4713A
LED IrLED 860nm IrLED 3-Pin SMD T/R
Avnet Manufacturer Part #:
SFH 4713A
RoHS 10 Compliant
OSLON Black Series (850 nm) - 80°
Key Features
- IR lightsource with high efficiency
- Low thermal resistance (Max. 18 K/W)
- Centroid wavelength 850 nm
- Superior Corrosion Robustness
Technical Attributes
Find Similar Parts|
|
Description | Value |
|---|---|---|
|
|
Viewing Angle | 90 ° |
|
|
Number of LEDs | 1 |
|
|
Peak Wavelength | 860 nm |
|
|
Maximum Forward Current | 1000 mA |
|
|
Reverse Voltage | 5 V |
|
|
Mounting | Surface Mount |
|
|
Lead Finish | Gold |
|
|
Intensity | 345 mW/sr |
|
|
Lens Shape Type | Domed |
|
|
Category | IrLED |
|
|
MSL Level | 2 |
|
|
Pin Count | 3 |
|
|
Max Processing Temp | 260 |
|
|
Mounting Orientation | Top Mount |
|
|
Maximum Forward Voltage per Color | 1.75 V |
|
|
Type | IrLED |
|
|
Screening Level | Extended Industrial |
|
|
Product Dimensions | 3.85 x 3.85 x 2.29 |
|
|
Operating Temperature | -40 to 125 °C |
|
|
Supplier Package | SMD |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| ECCN: | EAR99 |
| SCHEDULE B: | PARTS... |
| HTSN: | PARTS... |
Documents
Please log in to view more information.
Documents
| Title | Download | Type | Date Published |
|---|---|---|---|
| Removal of inner transportation box | Errata-Sheets | 20200115 | |
| Removal of inner transportation box (“pizza boxâ€) | Errata-Sheets | 20200415 | |
| OSR-OOS_PCN-2016-002 PCN | EOL-Documentation | 20160109 |
