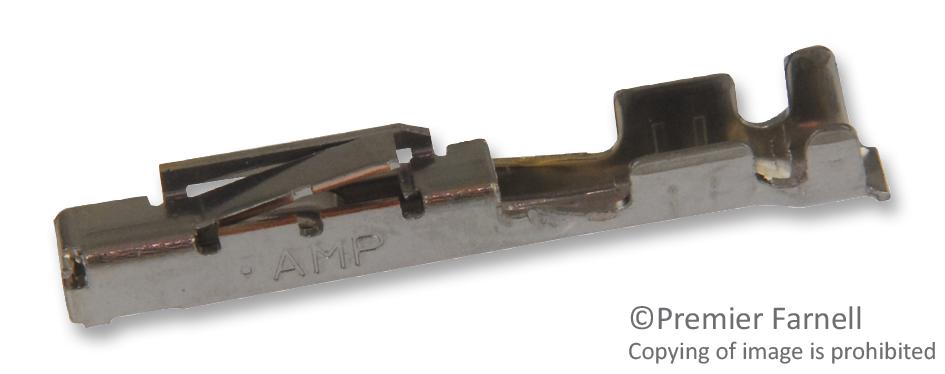

1318107-1
Rectangular Power Contact, Dynamic D-2000, Gold Plated Contacts, Copper, Socket, Crimp, 22 AWG
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
コネクタ, コネクタ端子, Other Contacts
Avnet Manufacturer Part #: 1318107-1
Secondary Manufacturer Part#: 1318107-1
-
RoHS 10 Compliant -
Tariff Charges
The 1318107-1 is a socket Signal Contact made of copper alloy with gold plated finish. It accepts 22 to 18AWG wire size. The surface of gold-plated contacts is harder, which means less wear and tear and enables higher mating cycles. The mating force of gold-plated contacts is lower as well. The open barrel crimp contact is suitable for D-2 series dynamic connectors.
- Locking lance contact retention
- 250VAC/DC Operating voltage
- 5A Contact current rating
- =3mO Contact resistance
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Straight | ||
| Copper Alloy | ||
| Gold | ||
| Receptacle | ||
| Gold | ||
| Cable Mount | ||
| -55 to 105 °C | ||
| 15.98 x 2.58 x 2.6 mm | ||
| Crimp |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8536904000 |
| Schedule B: | 8538907040 |
