410-352-25

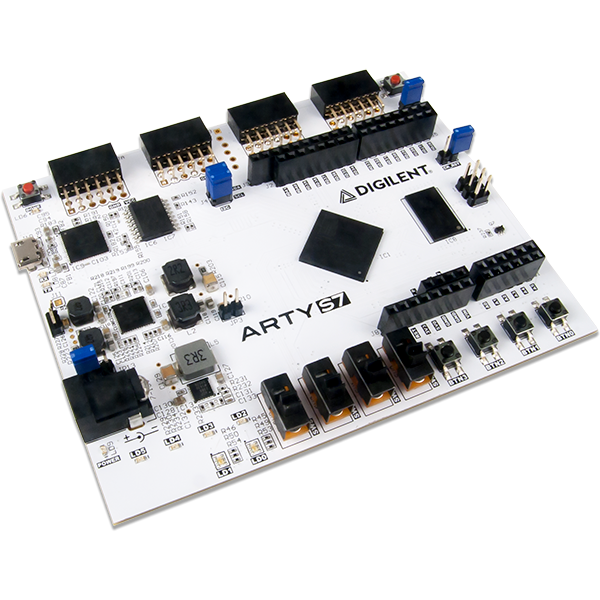

Arty S7 is a Spartan-7 FPGA board for hobbyists and makers. The Spartan-7 FPGA offers the most size, performance and cost conscious design engineered with the latest technologies from Xilinx. Putting this FPGA in the Arty form factor provides users with a wide variety of I/O and expansion options. Use the dual row Arduino® connectors to mount one of the hundreds of hardware compatible shields available or use the Pmod ports with Digilent's pre-made Pmod IP blocks for a more streamlined design experience. Arty S7 was designed to be MicroBlaze ready and comes out of the box ready to use with Xilinx's WebPACK licensing.

• Arty S7-25 features Xilinx XC7S25-CSGA324
• 23,360 logic cells, 3,650 slices and 29,200 flip-flops
• Internal clock speeds exceeding 450MHz
• On-chip analogue-to-digital converter (XADC)
• Programmable over JTAG and Quad-SPI flash
• Powered from USB or any 7V-15V source
• USB-UART bridge system connectivity
• 4 Pmod and Arduino/chipKIT shield expansion connector
• 4 switches, 4 buttons, 1 board and 1 FPGA reset button, 4 green and 2 RGB LEDs
