410-248

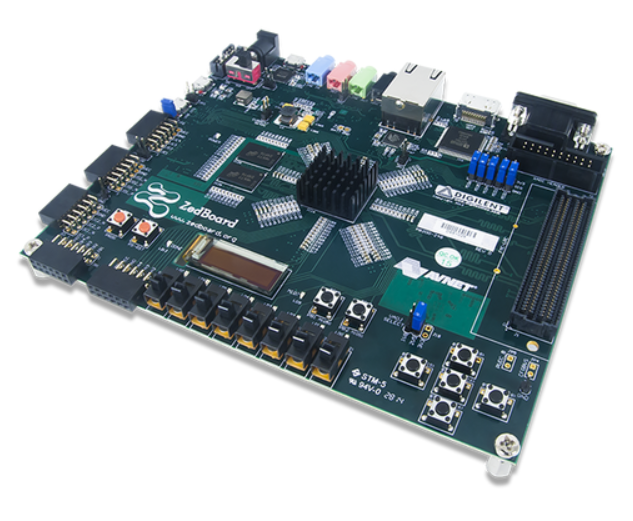

ZedBoard is a low-cost development board for the Xilinx Zynq-7000 all programmable SoC (AP SoC). This board contains everything necessary to create a Linux, Android, Windows, or other OS/RTOS based design. Additionally, several expansion connectors expose the processing system and programmable logic I/Os for easy user access.Take advantage of the Zynq-7000 AP SoCs tightly coupled ARM processing system and 7-series programmable logic to create unique and powerful designs with the ZedBoard. Target applications include video processing, motor control, software acceleration, Linux/Android/RTOS development, embedded ARM processing, and general Zynq-7000 AP SoC prototyping. The ZedBoard kit is supported by community website where users can collaborate with other engineers also working on Zynq designs.

• Xilinx Zynq-7000 AP SoC XC7Z020-CLG484
• Dual-core ARM Cortex-A9
• 512 MB DDR3
• 256 MB Quad-SPI Flash
• 4 GB SD card
• Onboard USB-JTAG Programming
• 10/100/1000 Ethernet
• USB OTG 2.0 and USB-UART
• Analog Devices ADAU1761 SigmaDSP Stereo, Low Power, 96 kHz, 24-Bit Audio Codec
• Analog Devices ADV7511 High Performance 225 MHz HDMI Transmitter (1080p HDMI, 8-bit VGA, 128x32 OLED)
• PS & PL I/O expansion (FMC, Pmod, XADC)
