410-126

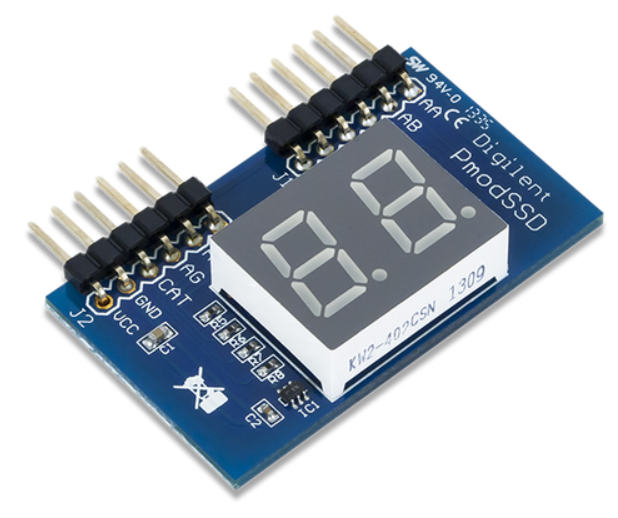

410-126 is a Pmod SSD seven-segment display module. Users can toggle through GPIO signals which digit is currently on at a rate of 50Hz or greater to achieve persistence-of-vision to give the effect of both digits being lit up simultaneously. The PmodSSD utilizes a common cathode configuration to display a variety of LED segment combinations. The ten segment combinations corresponding to digits 0 - 9 are generally the most useful, although other custom combinations can also be created. The PmodSSD communicates with the host board via the GPIO protocol. A logic level high signal on a particular anode will light up that respective segment on whichever digit is currently enabled. Users are able to select a particular digit by driving the Digit Selection pin (C) to a logic high or low voltage.

• Two-digit high-brightness seven-segment display
• Easily view a counter or timer
• Common cathode configuration
• Small PCB size for flexible designs (2.5cm × 4.30cm)
• Two 6-pin Pmod connectors with GPIO interfaces
• Follows Digilent Pmod interface specification type 1
