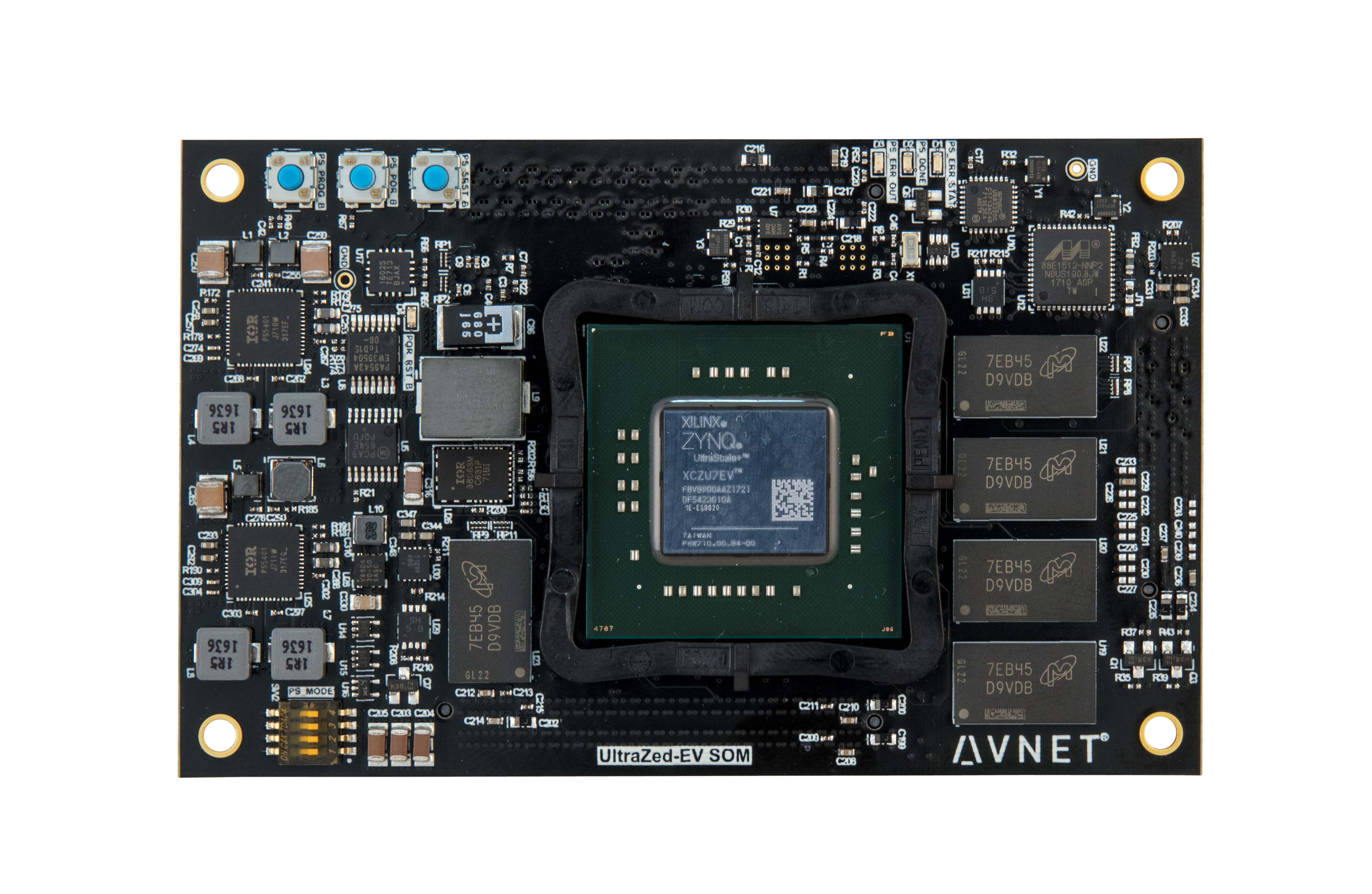

AES-ZU7EV-1-SOM-I-G
Click image to enlarge
Manufacturer:Avnet Engineering Services
Product Category:
null
Avnet Manufacturer Part #: AES-ZU7EV-1-SOM-I-G
Secondary Manufacturer Part#: AES-ZU7EV-1-SOM-I-G
-
RoHS 10 Compliant -
Tariff Charges
- UltraZed-EV SOM (industrial temp) XCZU7EV-1FBVB900I)
- PS DDR4 SDRAM (4GB, in x64 configuration), PL DDR4 SDRAM (1GB, in x16 configuration)
- 300MHz LVDS system clock, Dual QSPI flash (64MB), I2C EEPROM (2Kb), eMMC flash (8GB, x8)
- USB 2.0 ULPI PHY, Gigabit Ethernet PHY, I2C 8-bit I/O expander, 2-channel I2C switch/mux
- PS reference clock input, on-board voltage regulators, POR circuit, 4-position boot mode DIP switch
- 3 JX connectors, providing the following: 152 user PL I/O pins, 26 user PS MIO pins
- 4 PS GTR reference CLK I/Ps, 16 PL GTH transceiver, 8 PL GTH reference clock I/Ps, PS JTAG interface
- Interface: PL SYSMON, USB 2.0 connector, Gigabit Ethernet RJ45 connector, PMBus
- SOM PS VBATT battery input, carrier card I2C interface, SOM Reset input, carrier card reset output
- Carrier card interrupt input and power good output, input voltages and output sense pins
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 512 MB | ||
| 8 GB | ||
| ARM | ||
| 1 DisplayPort | ||
| Board to Board | ||
| One 10/100/1000 | ||
| 2 | ||
| 6 | ||
| 178 | ||
| 2 | ||
| 5, 4 GB | ||
| ARM Mali-400 MP2 | ||
| QSPI Flash | ||
| ARM Cortex A53|ARM Cortex R5F | ||
| AMD | ||
| 102 x 63.5 mm | ||
| eMMC | ||
| Pmod | ||
| USB2.0|USB3.0 | ||
| 1 HDMI | ||
| 1 HDMI |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | 5A002.A.4 |
| HTSN: | 8471500150 |
| Schedule B: | 8471500150 |
Factory Lead Time:
