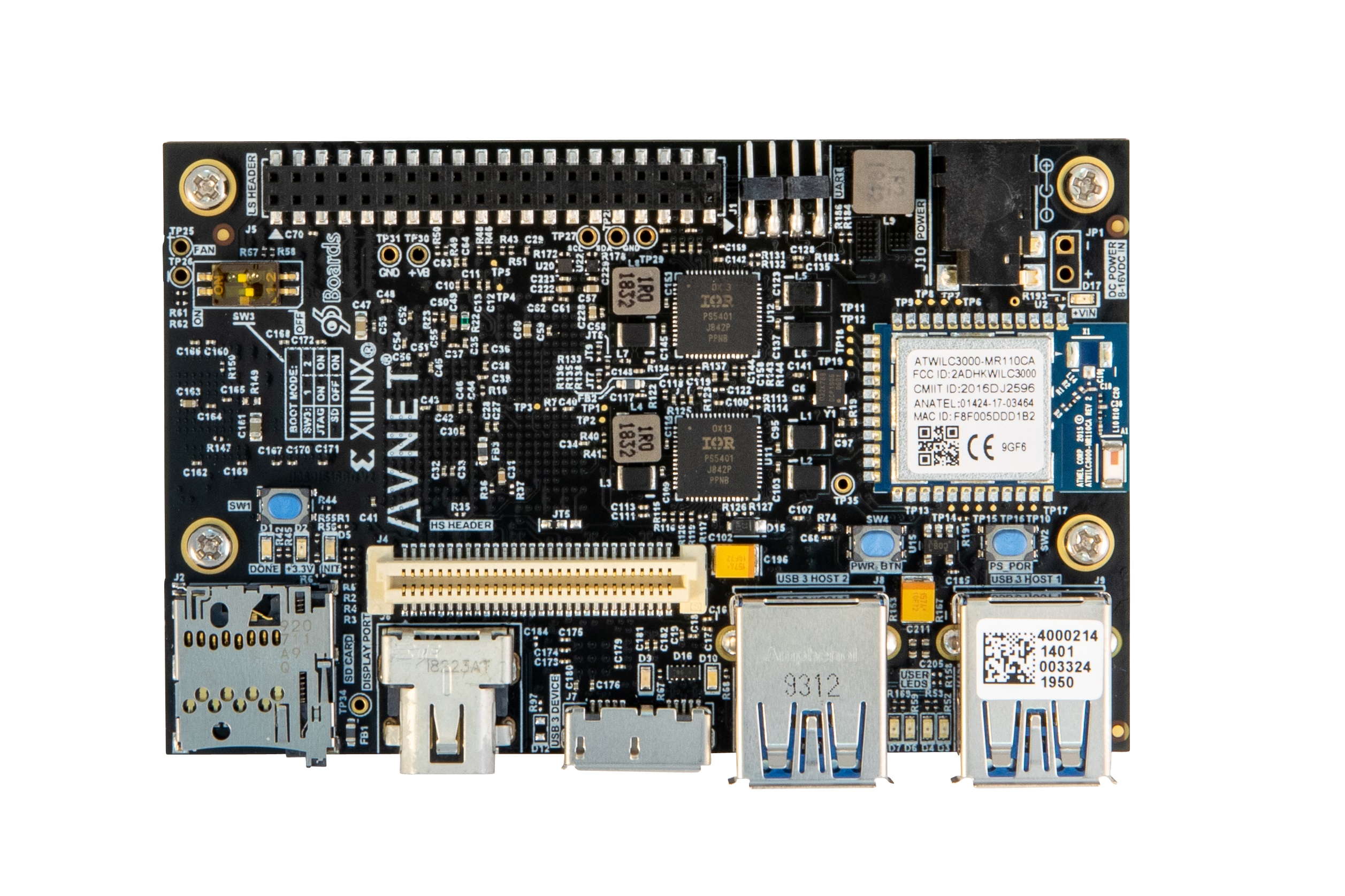

AES-ULTRA96-V2-G

The Ultra96-V2 updates and refreshes the Ultra96 product that was released in 2018. Like Ultra96, the Ultra96-V2 is an Arm-based, Xilinx Zynq UltraScale+™ MPSoC development board based on the Linaro 96Boards Consumer Edition (CE) specification. Ultra96-V2 is available in more countries around the world as it has been designed with a certified radio module from Microchip. Additionally, Ultra96-V2 is available in both commercial and industrial temperature grade options. Additional power control and monitoring is possible with the included Infineon Pmics. Like Ultra96, the Ultra96-V2 boots from the provided Delkin 16 GB microSD card. Engineers have options of connecting to Ultra96-V2 through a Webserver using integrated wireless access point capability or to use the provided Linux Matchbox windows environment which can be viewed on the integrated Mini DisplayPort video output. Multiple application examples and on-board development options are provided as examples.

Ultra96-V2 provides four user-controllable LEDs. Engineers may also interact with the board through the 96Boards-compatible low-speed and high-speed expansion connectors by adding peripheral accessories such as those included in the MikroE Click Mezzanine for 96Boards (available as an accessory). Micron LPDDR4 memory provides 2 GB of RAM in a 512M x 32 configuration. Wireless options include 802.11b/g/n Wi-Fi and Bluetooth 5 Low Energy. The radio module is Agency Certified in over 75 countries. UARTs are accessible on a header as well as through the expansion connector. JTAG is available through a header. The convenient JTAG/UART Pod (available as an accessory) provides both JTAG and UART connections via USB. I2C is available through the expansion connector.

Two Microchip USB3320 USB 2.0 ULPI Transceivers and one Microchip USB5744 4-Port SS/HS USB Controller Hub enable multiple USB connections. Ultra96-V2 provides one upstream (device) and two downstream (host) USB 3.0 connections. A USB

• Xilinx Zynq UltraScale+ MPSoC ZU3EG A484
• Micron 2 GB (512M x32) LPDDR4 Memory
• Delkin 16 GB microSD card + adapter
• Downloadable SD card image for Linux OS with Matchbox desktop environment
• Microchip Wi-Fi / Bluetooth
• IDT VersaClock 6E clock generator
• Infineon high efficiency power management
• Aavid Heatsink
• Mini DisplayPort (MiniDP or mDP)
• 1x USB 3.0 Type Micro-B upstream port
• 2x USB 3.0, 1x USB 2.0 Type A downstream ports
• 40-pin 96Boards Low-speed expansion header
• 60-pin 96Boards High-speed expansion header
• 85mm x 54mm form factor
• Linaro 96Boards Consumer Edition compatible
