EK-U1-ZCU111-G-J

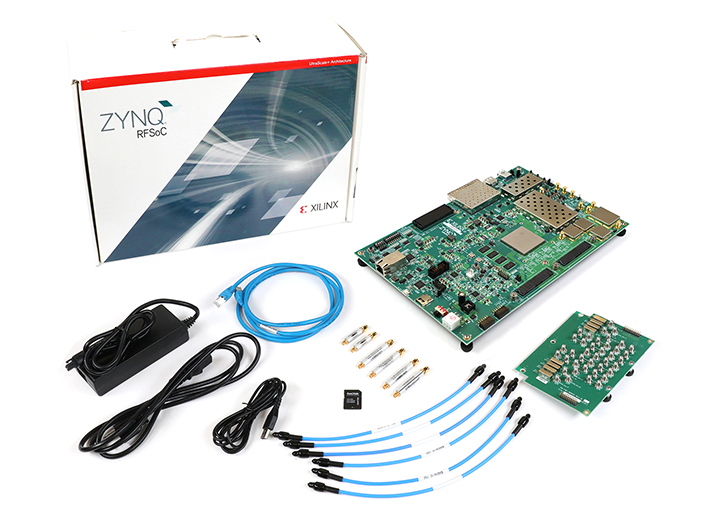

EK-U1-ZCU111-G-J is an AMD Zynq™ UltraScale+™ RFSoC ZCU111 evaluation kit. This kit features a Zynq UltraScale+ RFSoC supporting 8 12-bit 4.096GSPS ADCs, 8 14-bit 6.554GSPS DACs, and 8 soft-decision forward error correction (SD-FECs). Complete with Arm® Cortex®-A53 and Arm Cortex-R5 subsystems, UltraScale+ programmable logic, and the highest signal processing bandwidth in a Zynq UltraScale+ device, this kit provides a rapid, comprehensive RF Analog-to-Digital signal chain prototyping platform. The AMD Zynq™ UltraScale+™ RFSoC ZCU111 evaluation kit that enables designers to jumpstart RF-Class analogue designs for wireless, cable access, early-warning(EW)/radar, and other high-performance RF applications.

• Zynq UltraScale+ RFSoC ZCU111 evaluation board with XCZU28DR-2FFVG1517E RFSoC
• DDR4 component – 4GB, 64bit, 2666MT/s, attached to Programmable Logic (PL)
• DDR4 SODIMM – 4GB 64bit, 2400MT/s, attached to Processor Subsystem (PS)
• Ganged SFP28 cage to support up to 4 SFP/SFP+/zSFP+/SFP28 modules
• USB3, DisplayPort, and SATA
• FMC+ interface for I/O expansion with 12x 33Gb/s GTY transceiver, 34 user defined differential I/Os
• XM500 RFMC balun transformer add-on card with 4 DACs/4 ADCs to baluns 4 DACs/4 ADCs to SMAs
• Zynq UltraScale+ XCZU28DR-2FFVG1517E RFSoC: 8x 12-bit, 4.096GSPS RF-ADC
• 8x 14-bit, 6.554GSPS RF-DAC, 930k system logic cells, 60.5Mb memory
• 4272 DSP slices and 371 maximum I/O pins
