J-TYSOM-3-ZU7EV

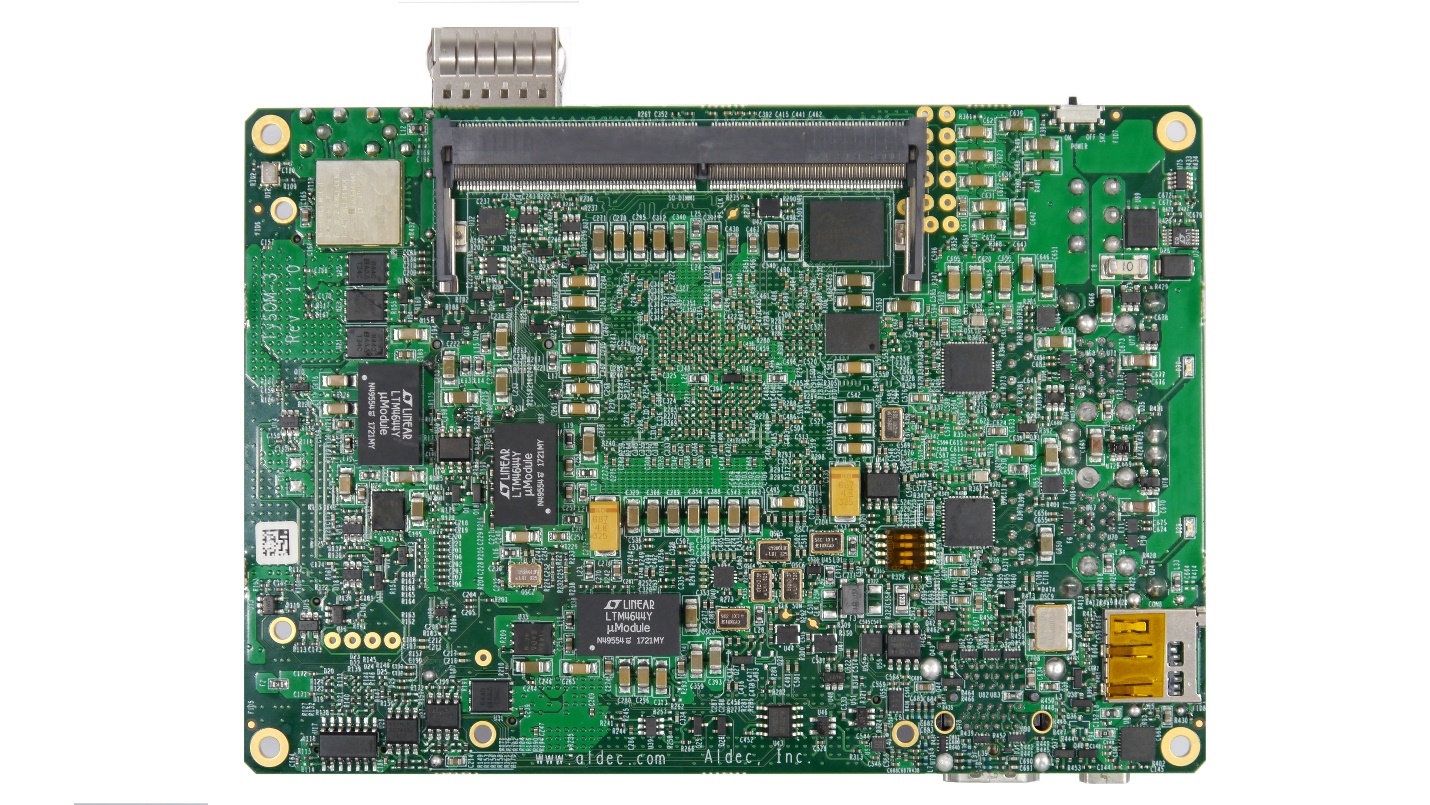

TySOM-3-ZU7 includes Xilinx Zynq UltraScale+ ZU7EV-FFVC1156 MPSoC which contains a Video Codec Unit which supports H.264/H.265, and also it has the biggest FPGA in the UltraScale+ MPSoC family. This chip includes a Quad-core ARM Cortex-A53 as an Application Processing Unit, Dual-core ARM Cortex-R5 as a Real-Time Processing Unit and ARM Mali-400 MP2 as a Graphics Processing Unit. This prototyping board contains 4 GB DDR4 Memory for the Programmable Logic (PL) and support DDR4 SODIMM Memory for the Processing System (PS). This board includes 2 Gb NAND Memory and supports up to 32GB of SSD storage in Micro-SD card. Communication and networking is enabled by ×2 Gigabit Ethernet, Si-Fi & Bluetooth, CAN, Pmod, 4× USB 3.0, USB to UART Bridge, SATA and QSFP+ connector. Multimedia interfaces are provided using DisplayPort, HDMI IN/OUT. To expand the peripherals, 2× FMC (1× HPC and 1× LPC) VITA 57.1-2010 compliant are provided on the board. Thus, additional devices can be connected as FMC Daughter Cards that are provided by Aldec and other vendors.

• 256Mb QSPI Flash Memory
• 2× Gigabit Ethernet PHY DP83867CR, Wi-Fi/Bluetooth module
• 4Gb RAM – DDR4 Programmable Logic
• 4x USB 3.0
• Accelerometer, Temperature Sensor, SYSMON, Current monitor
• DDR4 SODIMM Memory for the Processing System
• Dual-core ARM Cortex-R5 as a Real-Time Processing Unit
• HDMI IN/Out & DisplayPort
• Micro-SD support up to 32GB
• Quad-core ARM Cortex-A53 as an Application Processing Unit
• SATA, CAN, QSFP+, Pmod connector
• UART to USB bridge
• Video Codec Unit
• Xilinx Zynq UltraScale+ ZU7EV-FFVC1156 MPSoC
