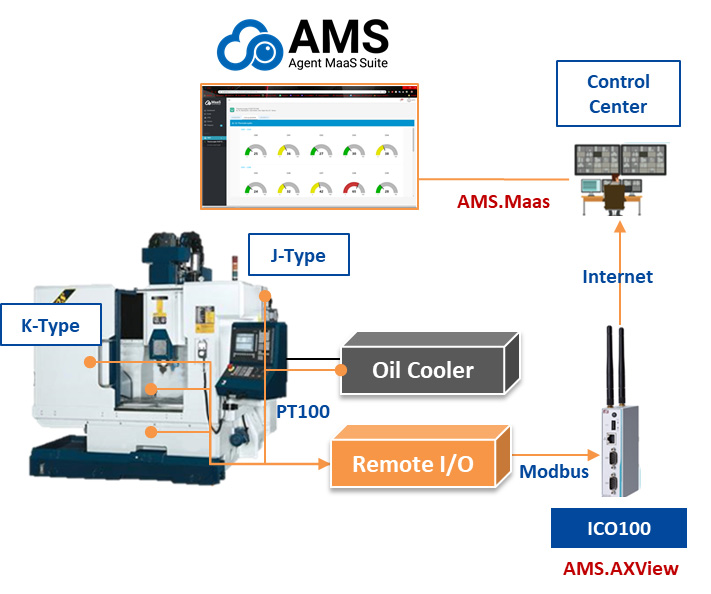

Use Case 1: CNCマシンの温度センサデータ取得による装置状態のモニタリング
- Connecting different type thermo-sensor in/out of CNC machine
- Easily managing self-detect, self-diagnosis, event notifications and data logging

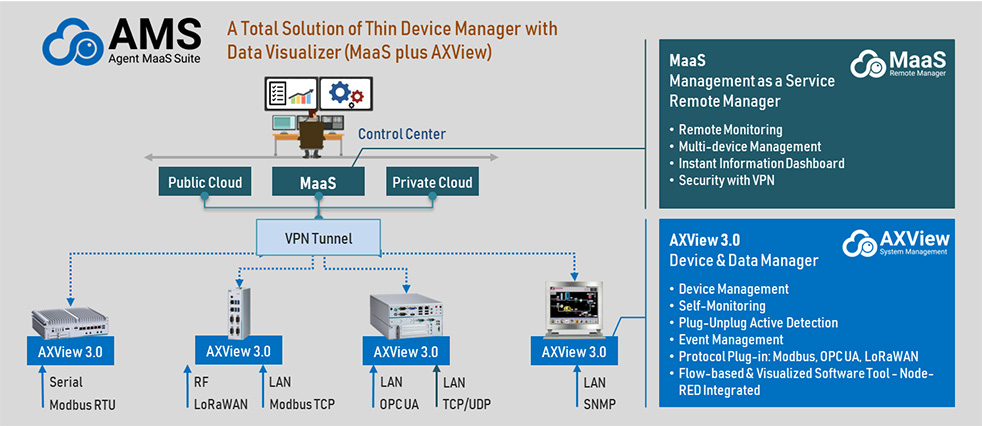

- AMS.AX View intelligent remote monitoring software for IIoT

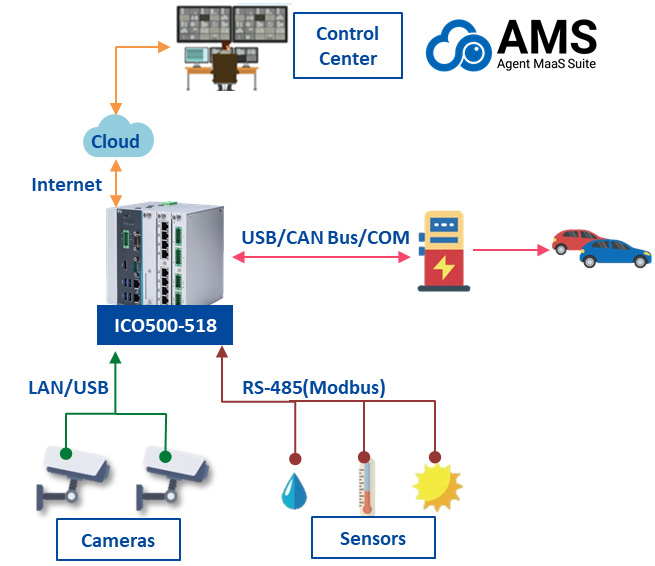

Use Case ２: エネルギー貯蔵管理システムのIIoTゲートウェイ

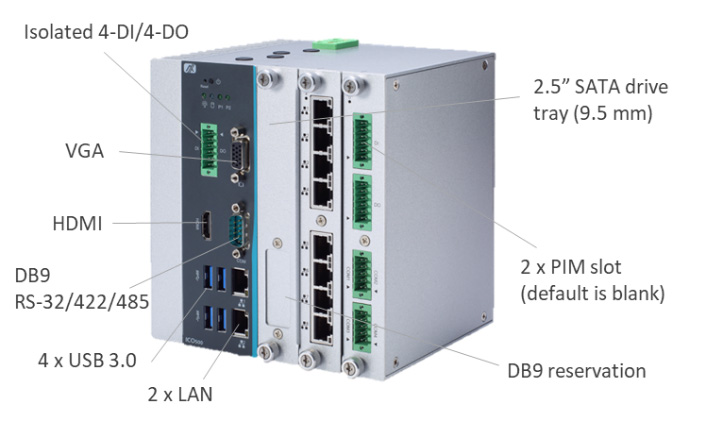

ファンレスDINレールモジュラー組込みシステム ICO500-518
- 7th gen Intel® Core™ i7/i5/i3 or Celeron®
- 1 DDR4 SO-DIMM slot for up to 16GB of memory
- 1 swappable 2.5" SATA drive tray
- 2 PIM (plug-in I/O module) slots (isolated CAN/COM, DIO, LAN, PoE)
- Fanless and isolated I/O module design
- Wide operating temperature range of -40°C to +70°C
- Supports Windows® 10 IoT, Linux (by request), AMS
