Non-Isolated DC-DC converter module PicoBK™

The MYR series PicoBK™ is thin and small size DCDC converter with integrates an inductor and control IC. Modularization reduces the number of external parts. Reduce solution size/height.

Murata Non-Isolated DC-DC converter module PicoBK™ are designed to help designers bring products to market faster using proven, high-performance solutions; these power modules integrate semiconductor ICs, inductors, FETs, loop compensation, and other passive components into a compact package.


Features

• High efficiency, compact size
• Low height (<1.3 mm) for mounting on the back of a PCB
• Excellent thermal performance
• Improved light-load efficiency
• Low input/output ripple
• Low EMI

Applications

• Optical Transceiver
• Wireless Stereo
• Smart Watch

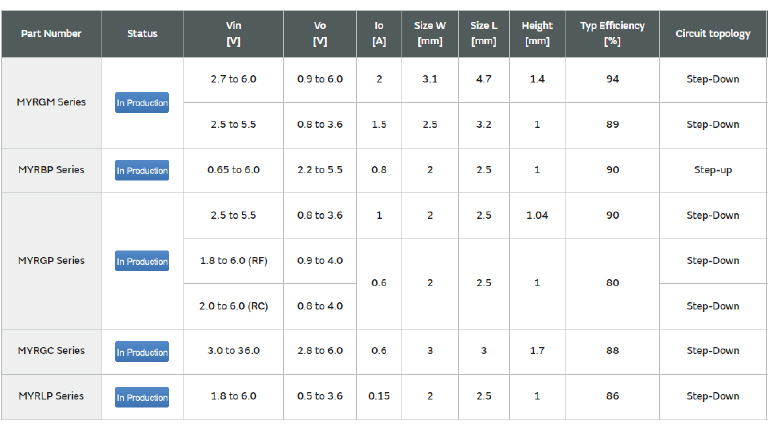

Key components

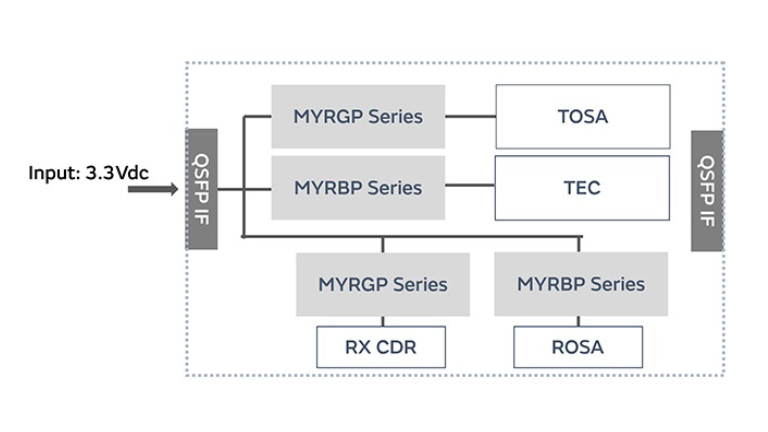

Block diagram
