ExaMAX® 2.00 mm High-Speed Backplane Cable Socket EBCF

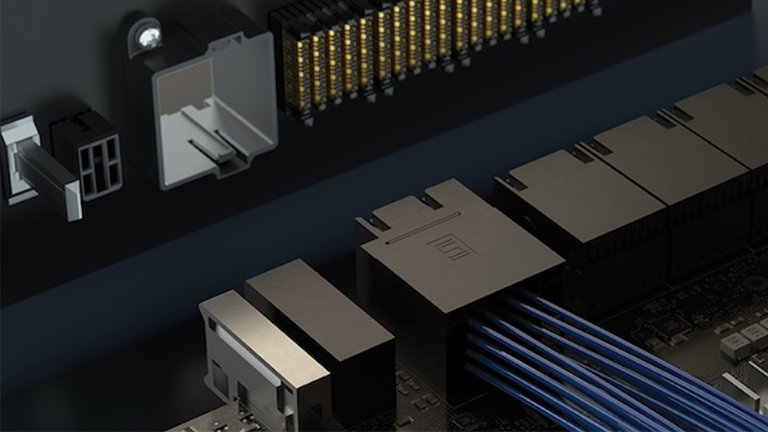

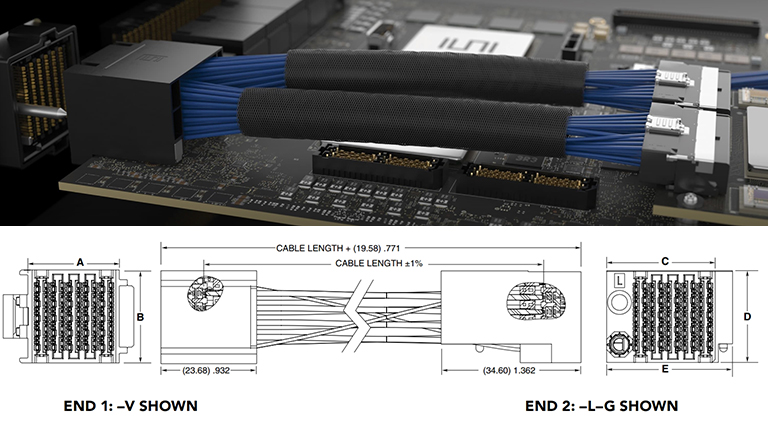

The ExaMAX® backplane system offers high-density and design flexibility to fit a variety of applications, including Flyover® cable supporting 112 Gbps PAM4 and board-to-board supporting 64 Gbps PAM4 (32 Gbps NRZ).
112 Gbps PAM4 cable assemblies: ExaMAX® backplane cable systems improve signal integrity and routability using Samtec Flyover® technology, which routes the signal above a lossy PCB using co-extruded, ultra-low skew twinax for improved bandwidth and reach. Direct solder attach to contacts optimizes the signal path, further enhancing performance. Supports 112 Gbps PAM4 applications and is PCIe® 6.0/CXL® 3.2 capable.
Features
- 112 Gbps PAM4 performance (Cable-to-Cable)
- PCIe® 6.0/CXL® 3.2 capable
- Samtec’s Eye Speed® ultra low skew twinax cable provides improved signal integrity, increased flexibility and routability
- Improves signal integrity and increases signal path length at higher data rates
- Current rating: 3.6 A max
- Voltage rating: 125 VAC/177 VDC max
Application
- Industrial/IIoT
- Automotive & Transportation
- COMPUTER
- Mecical
- Energy
- Datacom
- AI
Block Diagram
