Current Sense Amplifier BD14211G-LA
A top-tier current sense amplifier for industrial applications. It operates on 2.7-5.5V, with -0.2V to +26V common mode range, 50 V/V gain, low 1 μA input bias, and minimal gain error.
This product is a rank product for the industrial equipment market. This is the best product for use in these applications. BD14211G-LA is a current sense amplifier. This device operates from a single 2.7 V to 5.5 V power supply. It has wide common mode voltage range from -0.2 V to +26 V, outputs analog voltage. The gain is 50 V/V. The matched gain resistor minimizes gain error and offset voltage. In additionally, the low input bias current is 1 μA that reduces the offset on the path to shunt resistor.
Features
- Wide Common Mode Voltage Range
- High Accuracy
- Low Offset Voltage
- Low Input Bias Current
Applications
- Industrial Equipment
- Telecom Equipment
- Over Current Detection
Video
YouTube Link:https://youtu.be/93LDNBpZ_ZQ

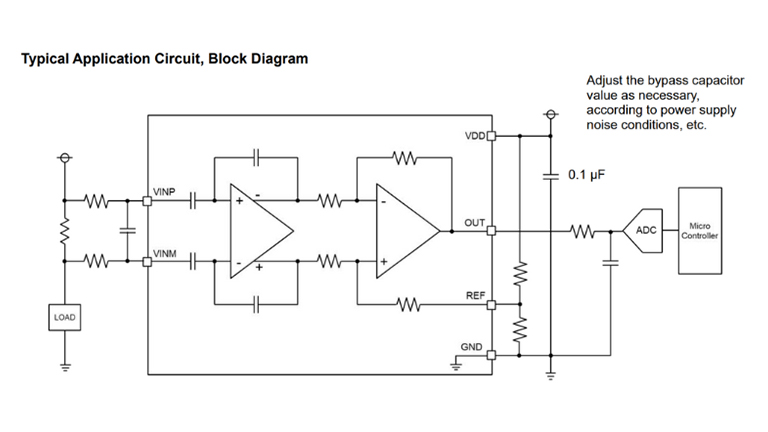

Block diagram
