STPM066S

STPM066S is a multiple voltage regulator composed by one battery compatible BUCK pre-regulator, one BOOST, one LDO and a precise voltage reference regulator. All the regulators have internal power switches. OTP (One Time Programmable) cells are used for the main device parameters programming (output voltages and currents, switching frequencies) and to configure power up sequence.

An SPI interface can be used to enable or disable the single voltage regulators, for diagnostic information and to program internal blocks parameters (monitor and Power Good thresholds, slew rate, etc.).

The device offers a set of features to support applications that need to fulfill functional safety requirements as defined by Automotive Safety Integrity Level (ASIL) A-B-C-D.

Features

• AEC-Q100 qualified
• Pre SMPS BUCK regulator, adjustable via OTP to 1.0 V, 1.1 V, 1.2 V, 1.35 V, 1.5 V, 3.3 V, 3.6 V, 5.0 V @ 1.35/2.6 A min peak current limit, 0.4/2.4 MHz
• Post SMPS BOOST regulator, adjustable via OTP to 5.0 V @ 0.3 A max load current, 7.0 V @ 0.2 A max load current, 2.4 MHz
• Post Linear regulator LDO, adjustable via OTP to 1.2 V, 1.25 V, 1.3 V, 1.8 V, 2.5 V, 2.8 V, 3.3 V, 5.0 V @ 300/600 mA max load current
• Precise Voltage reference, adjustable via OTP to 1.8 V, 2.5 V, 3.3 V, 4.1 V @ 20 mA max load current
• Programmed power up phase via OTP
• Programmable slew rate/soft start
• Short circuit protected outputs and Fault detection pin to Microcontroller
• Thermal shutdown junction temperature 175 °C

Applications

• ADAS (camera, radar, and domain controller)
• ECUs
• Infotainment systems (TCU,instrument clusters, and cockpit)

Benefits

• Easy implementation
• High reliability
• Low quiescent current
• Wide temperature range

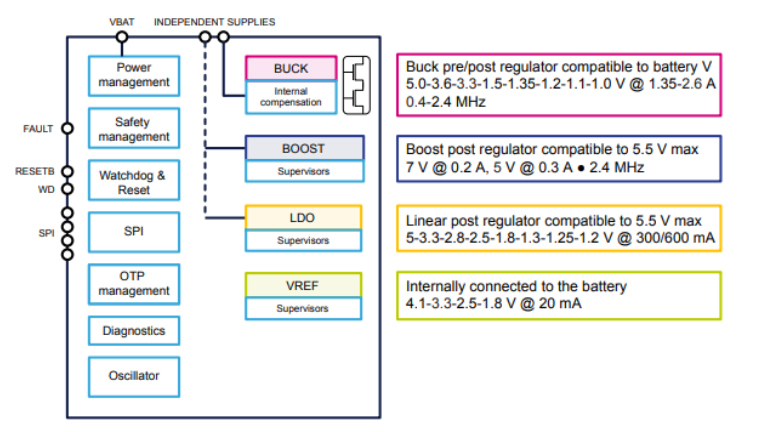

Block diagram

Description of Above Graphic

Simplified block diagram
