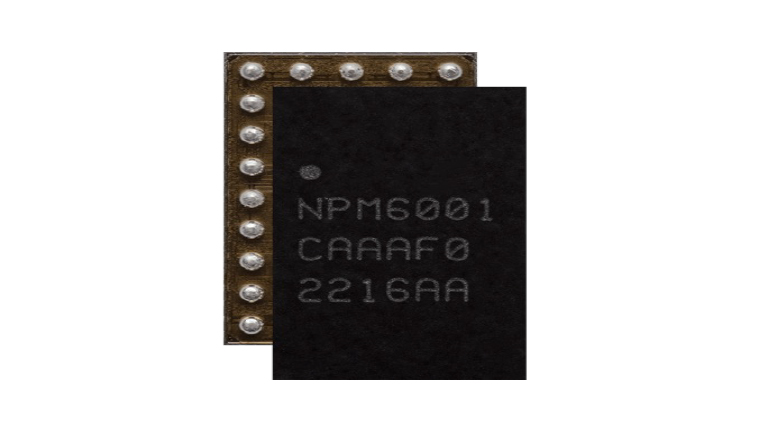

nPM6001
nPM6001 is an integrated Power Management IC (PMIC) with a low power standby mode that is optimized for battery powered applications. It has four highly efficient buck regulators with configurable dual-mode output and two low-dropout linear regulators.
nPM6001 is a dedicated power management IC (PMIC) with six power supplies – four highly efficient DC/DC buck regulators and two LDOs. It is designed to support complex applications with multiple power domains requiring independent control.
Features
- 3.0 V to 5.5 V operating input voltage range
- 1.2 μA typical operational quiescent current
- 1.8 V to 3.3 V, 30 mA, low-dropout linear regulator
- Fixed voltage, 1.8 V, 15 mA, low-dropout linear regulator
- Three general purpose I/Os
- Four step-down DC/DC regulators with dedicated control pins for switching between PWM and hysteretic modes with up to 95% efficiency
Applications
- Advanced wearables
- Portable video devices
- Asset trackers
- Interactive entertainment devices
Block Diagram
