VOD223T
Optocoupler, 2 Channel, SOIC, 8 Pins, 30 mA, 4 kV, 500 %

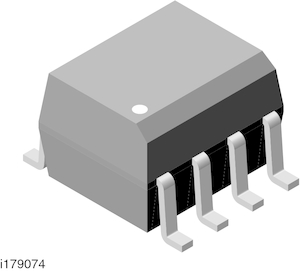

Click image to enlarge
Manufacturer:Vishay
Product Category:
光电器件, 光耦, 晶体管与光电输出光耦
Avnet Manufacturer Part #: VOD223T
Secondary Manufacturer Part#: VOD223T
-
RoHS 10 Compliant -
Tariff Charges
The VOD233T is a high current transfer ratio (CTR) optocoupler. It has a gallium arsenide infrared LED emitter and silicon NPN photodarlington transistor detector. This device has CTRs tested at an LED current of 1 mA. This low drive current permits easy interfacing from CMOS to LSTTL or TTL.
- High current transfer ratio at IF = 1 mA, 500 % minimum
- Isolation test voltage, 4000 VRMS
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 30 mA | ||
| Tin | ||
| 260 | ||
| 30 V | ||
| 4000 Vrms | ||
| Surface Mount | ||
| 2 | ||
| -40 to 100 °C | ||
| DC | ||
| 8SOIC | ||
| 8 | ||
| 5.84 x 3.91 x 3.38 - 0.2 mm | ||
| SOIC |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
