VO14642AABTR
MOSFET Relay, SPST-NO (1 Form A), AC / DC, 60 V, 2 A, SMD-6, Surface Mount

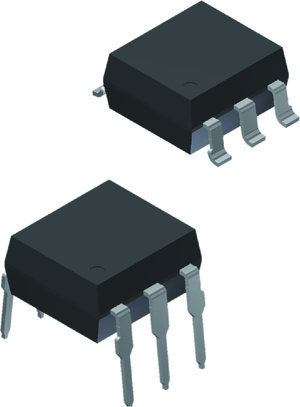

Click image to enlarge
Manufacturer:Vishay
Product Category:
Electromechanical, Relays, Solid State Relays
Avnet Manufacturer Part #: VO14642AABTR
Secondary Manufacturer Part#: VO14642AABTR
-
RoHS 10 Compliant -
Tariff Charges
The VO14642AABTR is a high speed SPST normally open (1 form A) solid-state relay in a DIP-6 package. The relays are constructed as a multi-chip hybrid device. Actuation control is via an infrared LED. The output switch is a combination of a photodiode array with MOSFET switches. The relays can be configured for AC/DC or DC only operation.
- High speed SSR - ton/toff < 800 µs
- Maximum RON 0.25O
- Isolation test voltage 5300 VRMS
- Load voltage 60 V
- Load current 2 A DC configuration
- DIP-6 package
- Clean bounce free switching
- TTL/CMOS compatible input
- Available on tape and reel
- Pure tin leads
- Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC
- Package : SMD-6, tape and reel
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 1 Form A | ||
| 50 mA | ||
| DC | ||
| Tin | ||
| 260 °C | ||
| 1.6 V | ||
| 5300 Vrms | ||
| Surface Mount | ||
| MSL 1 - Unlimited | ||
| -55 to 85 °C | ||
| 2 A | ||
| MOSFET | ||
| AC|DC | ||
| 60 V | ||
| 6SMD DIP | ||
| 6 | ||
| 7.6 x 6.65 x 3.55 mm | ||
| No | ||
| SMD DIP | ||
| Gull Wing |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8541409500 |
| Schedule B: | 8541409500 |
Factory Lead Time:
