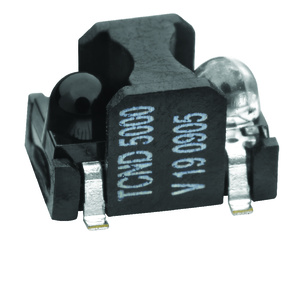

TCND5000
Reflective Photo Interrupter, PIN Photodiode, SMD, 25 mm, 100 mA, 5 Vr, 1.2 Vf
Click image to enlarge
Manufacturer:Vishay
Product Category:
Optoelectronics, Infrared - IR Components, Photointerrupters
Avnet Manufacturer Part #: TCND5000
Secondary Manufacturer Part#: TCND5000
-
RoHS 10 Compliant -
Tariff Charges
The TCND5000 is a Reflective Optical Sensor with PIN photodiode output. Includes an infrared emitter and pin photodiode in a surface mount package which blocks visible light. Operating range within 20% relative collector current 2 to 25mm. Daylight blocking filter. Compliant to RoHS Directive 2002/95/EC and in accordance to WEEE 2002/96/EC.
- Lead (Pb)-free soldering
- 940nm Emitter wave length
- Pin photodiode detector
- -40 to 85°C Operating temperature
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 100 mA | ||
| 190 mW | ||
| Surface Mount | ||
| MSL 4 - 72 hours | ||
| 1 | ||
| -40 to 85 °C | ||
| 4SMD | ||
| 4 | ||
| 6 x 3.7 x 3.75 mm | ||
| SMD | ||
| Reflective | ||
| 940 nm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
