KBU8J-E4/51
8A,600V,IN-LINE BRIDGE RECT
Click image to enlarge
Manufacturer:Vishay
Product Category:
Discretes, Diodes & Rectifiers, Bridge Rectifiers
Avnet Manufacturer Part #: KBU8J-E4/51
Secondary Manufacturer Part#: KBU8J-E4/51
-
RoHS 10 Compliant -
Tariff Charges

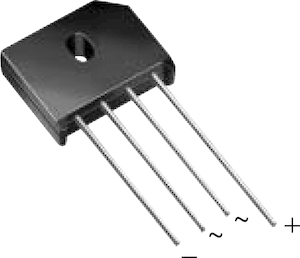

The KBU8J-E4/51 is a single-phase Bridge Rectifier with silver-plated leads terminals and UL94V-0 flame rated moulding compound case. The bridge rectifier features high surge current capability and high case dielectric strength of 1500V. This bridge rectifier is suitable for printed circuit boards. Polarity marked on the body.
- 420V Maximum RMS voltage
- 600V Maximum DC blocking voltage
- 300A Peak forward surge current
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 8 | ||
| SIP | ||
| Through Hole | ||
| 300 | ||
| 1 | ||
| Single Phase | ||
| 4 | ||
| 150 °C | ||
| 600 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8541100080 |
| Schedule B: | 8541100080 |
Factory Lead Time:
