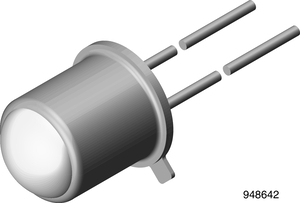

BPW24R
Silicon Pin Diode, 2000 pA, 900 nm, 12 °, -40 to 125 °C, TO-18-2
Click image to enlarge
Manufacturer:Vishay
Product Category:
Optoelectronics, Infrared - IR Components, Photodiodes
Avnet Manufacturer Part #: BPW24R
Secondary Manufacturer Part#: BPW24R
-
RoHS 10 Compliant -
Tariff Charges
The BPW24R is a high sensitive Silicon Planar Photodiode in a standard sealed metal case with a glass lens. A precise alignment of the chip gives a good coincidence of mechanical and optical axes. The device features a low capacitance and high speed even at low supply voltages. It is suitable for visible and near infrared radiation.
- High photo sensitivity
- High radiant sensitivity
- Fast response times
- Central chip alignment
- ±12° Angle of half sensitivity
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Glass | ||
| 260 | ||
| 10 nA | ||
| 1 to 15 ns | ||
| 1 to 15 ns | ||
| Through Hole | ||
| -40 to 125 °C | ||
| 2TO-18 | ||
| 0.6 A/W | ||
| Si | ||
| 2 | ||
| 5.5 x 5.5 x 6.15 mm | ||
| TO-18 | ||
| Chip | ||
| 900 nm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
