640456-2
Pin Header, Vertical, Wire-to-Board, 2.54 mm, 1 Rows, 2 Contacts, Through Hole Straight, MTA-100

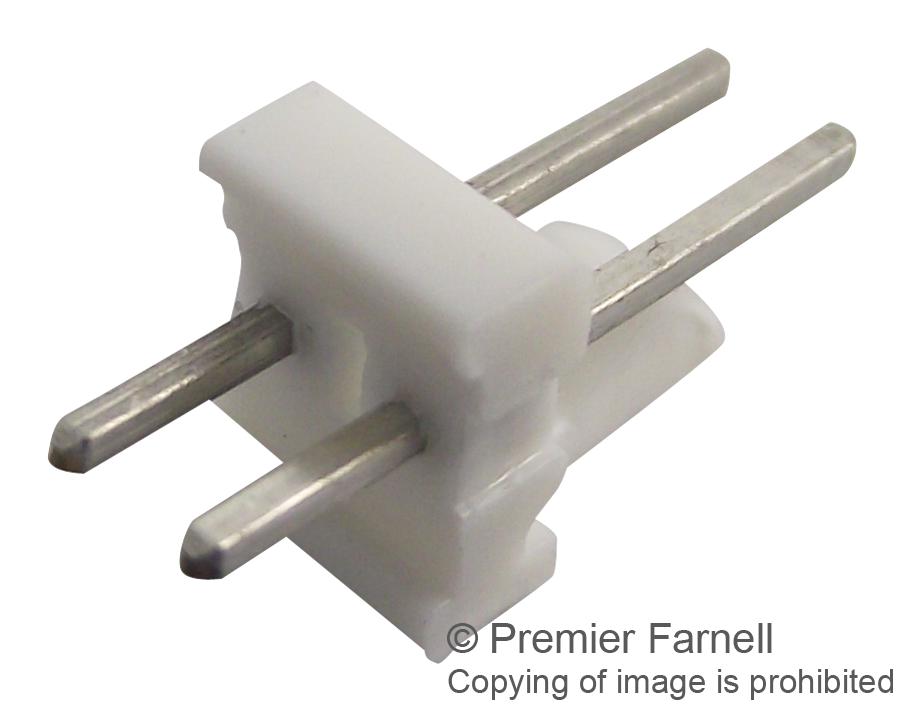

Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, PC Board Connectors, Wire to Board Connectors
Avnet Manufacturer Part #: 640456-2
Secondary Manufacturer Part#: 640456-2
-
RoHS 10 Compliant -
Tariff Charges
The 640456-2 from TE Connectivity is a 2.54mm pitch, single row 2 position MTA-100 friction lock unshrouded header. It is a polarized, notched, .025 straight square post for use with?MTA.100 connector assemblies.
- Current rating is 5A
- Operating temperature range from -55°C to 105°C
- Copper alloy with tin plated contacts
- Polyester GF housing
- UL, CSA approved
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Thermoplastic Polyester | ||
| Straight | ||
| Copper Alloy | ||
| Matte Tin Over Nickel | ||
| Header | ||
| Natural | ||
| Matte Tin Over Nickel | ||
| 265 | ||
| 10 mOhm | ||
| 5 A | ||
| Through Hole | ||
| 2 | ||
| 1 | ||
| -55 to 105 to 105 °C | ||
| 2.54 mm | ||
| 5.72 mm | ||
| 5.08 x 5.72 x 10.03 mm | ||
| 10.03 mm | ||
| 5.08 mm | ||
| 640456 | ||
| Solder | ||
| Partial Shrouded |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
