205204-4
D Sub Connector Housing, Tin & Dimple, 9 Ways, D Sub, 1, AMPLIMITE HDP-20 Series, Plug, Steel Body
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Connectors, Discrete Housing Connectors
Avnet Manufacturer Part #: 205204-4
Secondary Manufacturer Part#: 205204-4
-
RoHS 10 Compliant -
Tariff Charges

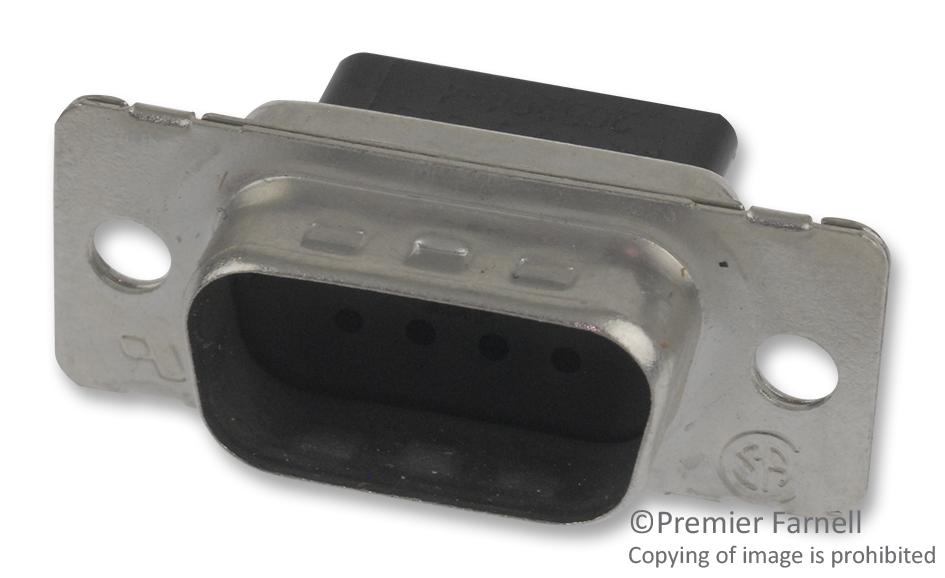

The 205204-4 from TE Connectivity is an AMPLIMITE HDP-20 series D sub crimp snap-in plug with 9 positions. The connector shell size is 1 and it has grounding indents.
- Tin plated steel shell
- Insert material is thermoplastic
- Contact size is 20
- UL94 V-0 flammability rating 
- Standard mounting method
- Available with mating connector lock 
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Nylon | ||
| Straight | ||
| Plug | ||
| Black | ||
| -55 to 105 °C | ||
| 17.7 mm | ||
| 30.81 x 17.7 x 12.54 mm | ||
| 12.54 mm | ||
| 30.81 mm | ||
| 28 to 18, 28 AWG |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
