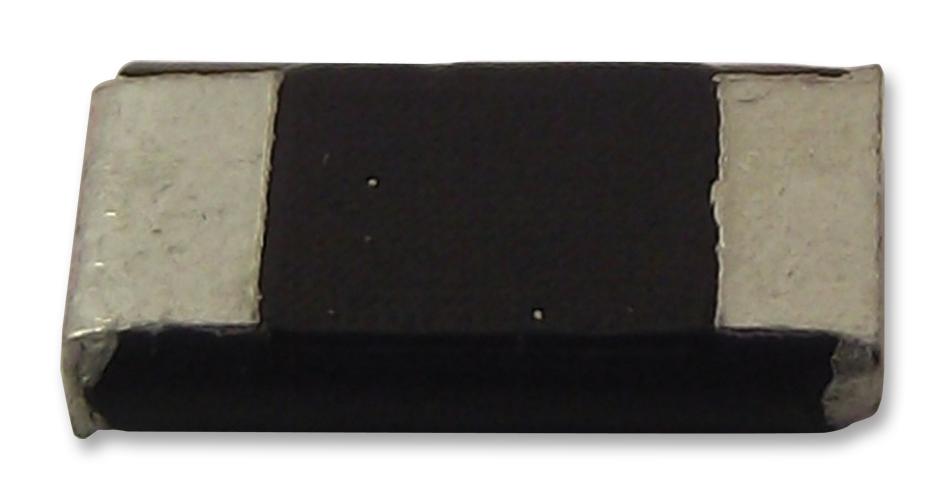

2-1879378-3
SMD Current Sense Resistor, 15 Milliohm, ± 1%, 3 W, 2512 [6432 Metric], Metal Strip
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
电阻器, 表面贴装电流检测电阻器
Avnet Manufacturer Part #: 2-1879378-3
Secondary Manufacturer Part#: 2-1879378-3
-
RoHS 10 Compliant -
Tariff Charges
The Type TLR Series SMD Low Ohmic - Current Sense Resistors are unique high power, metal chip resistor for current sensing positions. It has a special metal resistive element and suitable barrier layers beneath the solder to prolong terminal life. Following the developments by semiconductor manufacturers in the production of a range of IC's for battery charge management and low voltage power supplies, the TLR Series satisfies the demand for a low ohmic shunt resistor to act as a current sensor. It has particular applications in the automotive industry for sensing in EMU's.
- Up to 3 Watt at 80°C
- Supplied on Tape
- Ideal for Current Detection
- 12:06, 20:10 and 25:12 Packages Available
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 170 °C | ||
| -55 °C | ||
| 3 W | ||
| 0.6 mm | ||
| 6.35 mm | ||
| TLR Series | ||
| 3 mm | ||
| 0.0015 | ||
| 1 | ||
| 2512 | ||
| Metal Strip | ||
| 50 ppm/°C |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8537109170 |
| Schedule B: | 8536904000 |
Factory Lead Time:
