2-1825910-7
Tactile Switch, FSMRAJ, Top Actuated, Through Hole, Round Button, 160 gf, 50mA at 24VDC
Click image to enlarge
Manufacturer:TE Connectivity
Avnet Manufacturer Part #: 2-1825910-7
Secondary Manufacturer Part#: 2-1825910-7
-
RoHS 10 Compliant -
Tariff Charges

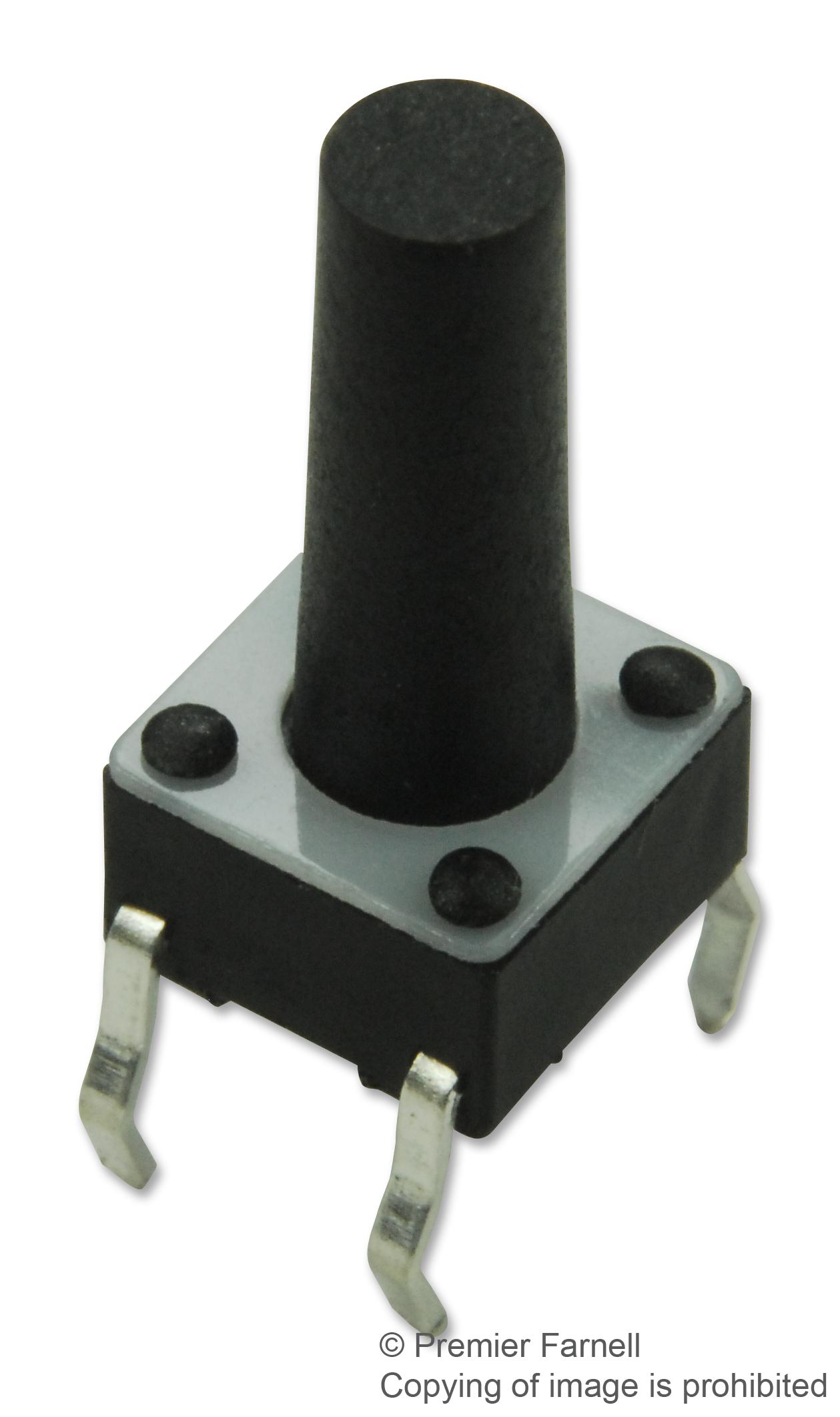

The 2-1825910-7 is a single-pole single-throw (SPST) Tactile Switch with silver-plated copper alloy contacts and black nylon extended round actuator. The FSM14JH through-hole vertical mount high temperature switch features unthreaded bushing, PET film cover, black nylon case and supports printed circuit board termination.
- 9.4 mm actuator height
- -40 to 85°C Operating temperature range
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Copper Alloy | ||
| Silver | ||
| Through Hole | ||
| -35 to 85 °C | ||
| SPST | ||
| 5.99 x 13 mm | ||
| OFF (ON) |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 85365000 |
| Schedule B: | 85365000 |
Factory Lead Time:
