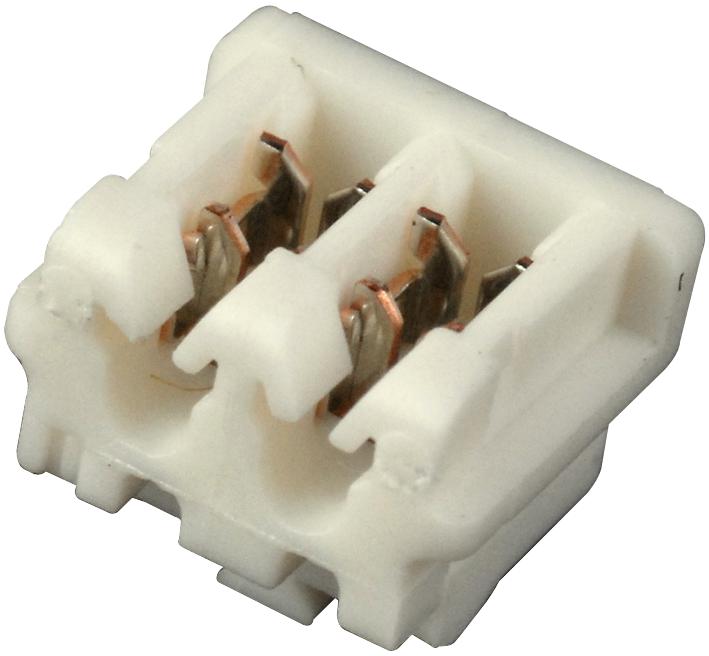

173977-2

The 173977-2 is a 2-way 1-row Hybrid Mini-Drawer Power Connector with pre-tinned phosphor bronze contacts. Hybrid mini-drawer connectors are designed for use in rack and panel application to serve as an I/O connector for copying machines, laser-beam printers and other OA equipment. A major design feature of these hybrid mini-drawer connectors is that mini-drawer connectors mate with one another on the connector mating side and in the back, signal circuits accept a pre-terminated CT receptacle connector. Also, for power circuits, crimp-type power contacts are used by inserting them into the four corners of the mini-drawer connector. The housing has an integrated guide-pin and socket to facilitate mating of the connector halves. Provision is also made to prevent dust from entering.

• Combine signal circuits and power circuits into one connector
• Power circuits can be used for high current of up to 15A
• Signal circuits accept CT connector in the back, reducing harnessing costs
• Power circuits use crimp type tab and receptacle contacts
• 3000 cycles Minimum durability
• 100MO Insulation resistance
