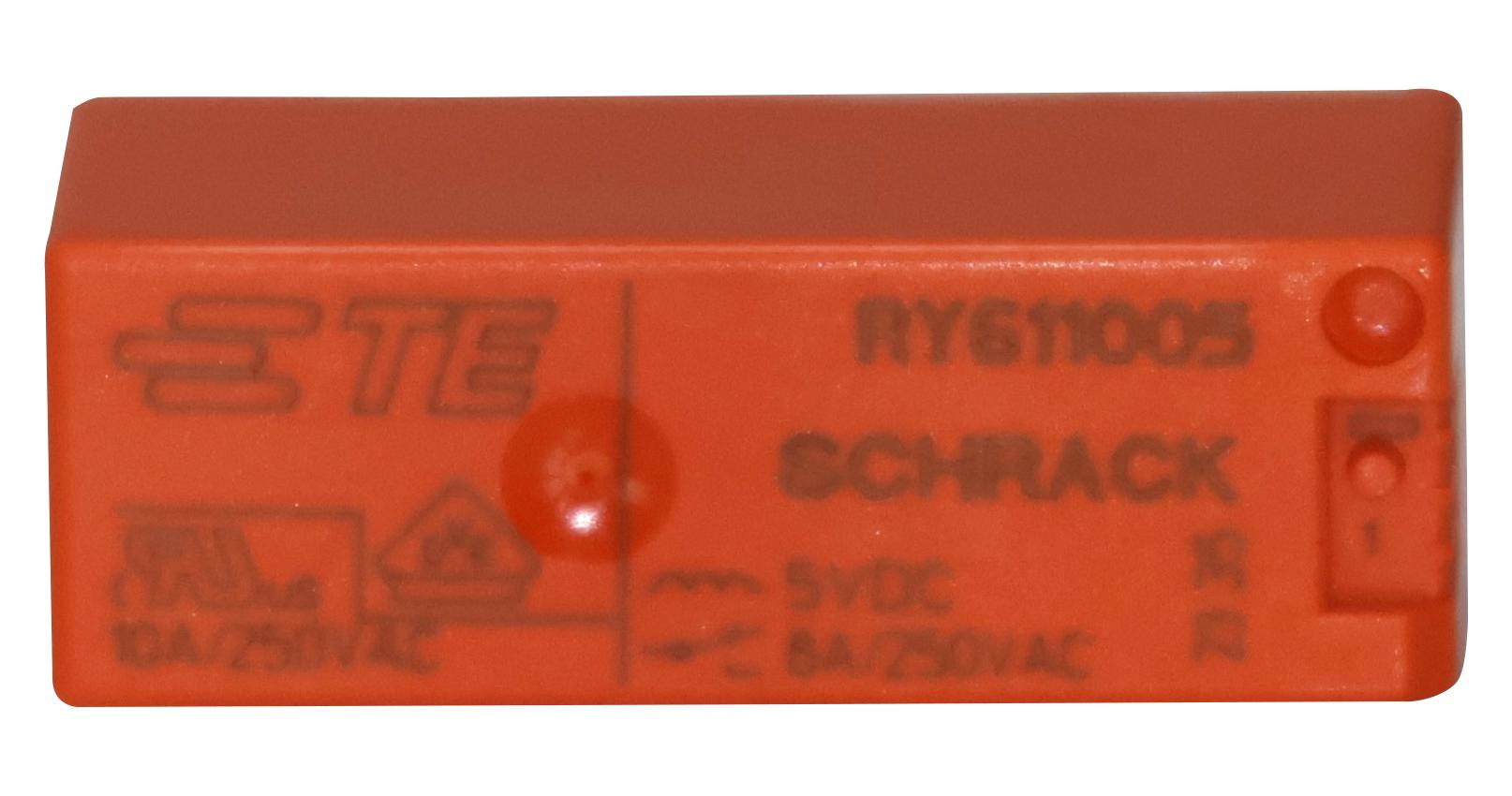

1-1393225-7
General Purpose Relay, RYII Series, Power, Non Latching, SPDT, 5 VDC, 8 A
Click image to enlarge
Manufacturer:TE Connectivity
Product Category:
Electromechanical, Relays, Power & General Purpose Relays
Avnet Manufacturer Part #: 1-1393225-7
Secondary Manufacturer Part#: 1-1393225-7
-
RoHS 10 Compliant -
Tariff Charges
The RY611005 is a 1-pole general-purpose Power PCB Relay with DC coil, RYII series. 1 form-C (1CO) contact configuration, AgNi 0.15 contact. 3.2mm pinning, wash tight, 5kV/8mm coil-contact. Reinforced insulation, low component height of 12.3mm. Especially suitable for resistive and inductive loads on form A (NO) and form B (NC) contacts. Plastic materials according to IEC 60335-1 (domestic appliances).
- RT III Environmental protection rating
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 44.64 mA | ||
| 112 Ohm | ||
| SPDT-CO | ||
| Nickel-Silver | ||
| 5 V | ||
| 270 °C | ||
| 400 V | ||
| 8 A | ||
| 3.5 Vdc | ||
| 2 kVA | ||
| 0.5 Vdc | ||
| Through Hole | ||
| 9 ms | ||
| -40 to 70 °C | ||
| 5 | ||
| Non-Latching | ||
| RYII | ||
| PC Pin | ||
| Power Relay |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8536410060 |
| Schedule B: | 8536904000 |
Factory Lead Time:
