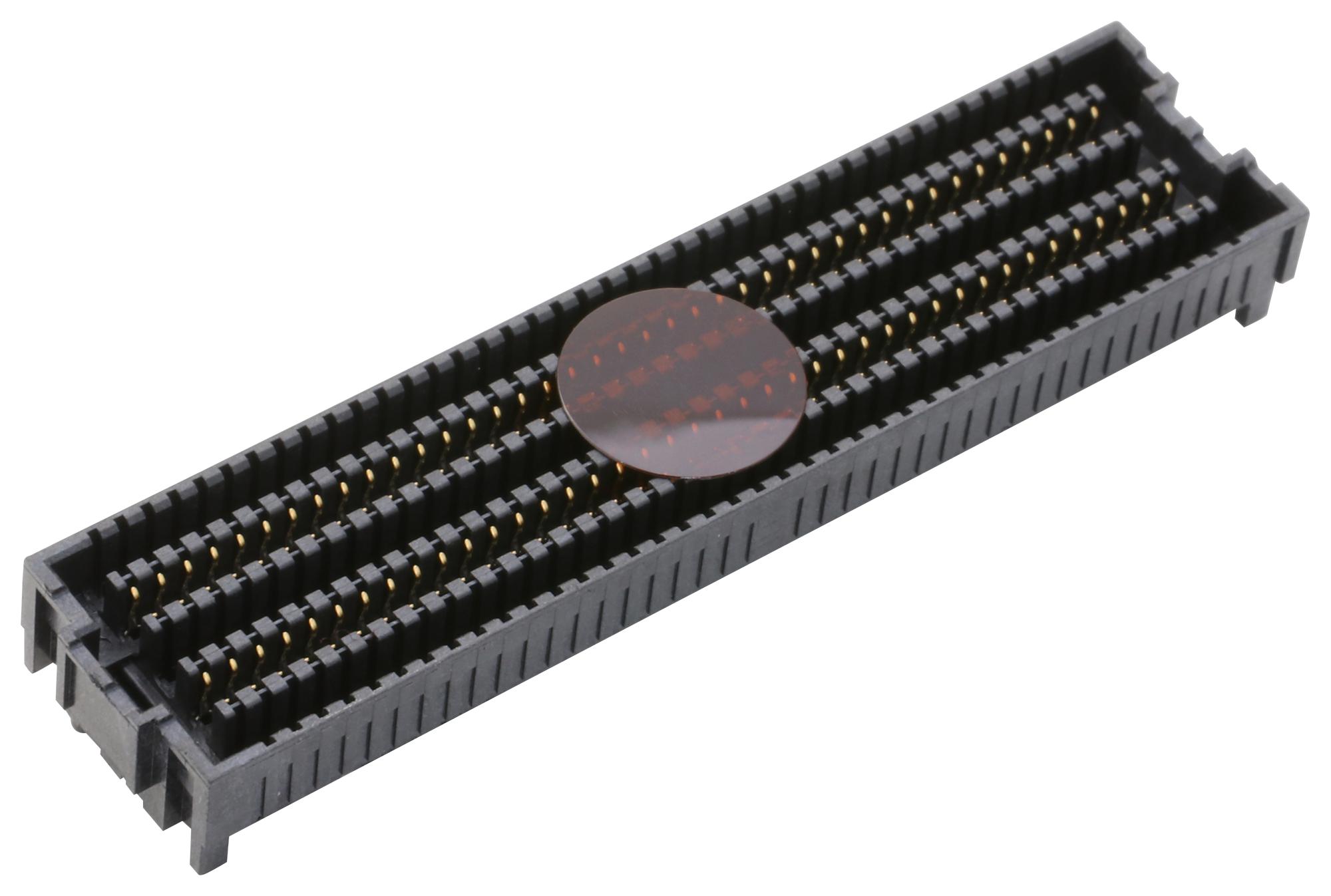

ASP-134486-01
Mezzanine Connector, Vita 57 XMC, Array, Female, 1.27 mm, 10 Rows, 400 Contacts, Surface Mount
Click image to enlarge
Manufacturer:Samtec
Product Category:
Connectors, PC Board Connectors, Stacking Board Connectors
Avnet Manufacturer Part #: ASP-134486-01
Secondary Manufacturer Part#: ASP-134486-01
-
RoHS 10 Compliant -
Tariff Charges
The ASP-134486-01 is a 400-pole 10-row 1.27mm Female FMC Connector with gold-plated copper alloy contacts. The VITA 57 Field Programmable Mezzanine Card (FMC) standard provides a mechanical standard for I/O mezzanine modules. This standard introduces a methodology that shall allow the front panel IO of IEEE 1101 form factor cards to be configured, via mezzanine boards.
- Lead-free solder
- High pin count
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| LCP (Liquid Crystal Polymer) | ||
| Straight | ||
| Copper Alloy | ||
| Gold Over Nickel | ||
| Receptacle | ||
| Black | ||
| Gold Over Nickel | ||
| 2.7 A | ||
| Surface Mount | ||
| MSL 1 - Unlimited | ||
| 400 | ||
| 10 | ||
| -55 to 125 °C | ||
| 1.27 mm | ||
| 13.23 mm | ||
| 57.46 x 13.23 x 6.55 mm | ||
| 6.55 mm | ||
| 57.46 mm | ||
| ASP | ||
| Solder |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Factory Lead Time:
