BR25G1MFJ-5AE2

BR25G1MFJ-5AE2 is a 1Mbit serial EEPROM of SPI BUS interface. It is used in applications such as ordinary electronic equipment (such as AV equipment, OA equipment, telecommunication equipment, home electronic appliances, amusement equipment, etc).

• SPI bus type, operating voltage range from 1.6V to 5.5V
• 1Mbit capacity, page size is 256byte, bit format is 131072 x 8bit
• 256byte write lockable identification page (ID page)
• Address auto increment function at read operation
• Auto erase and auto end function at data rewrite
• Write protect block setting by software memory array 1/4, 1/2, whole
• HOLD function by the HOLDB pin, prevention of write mistake
• Write prohibition at power on, write prohibition by the WPB pin, write prohibition block setting
• Clock frequency is 20MHz maximum, write time is 3.5ms maximum

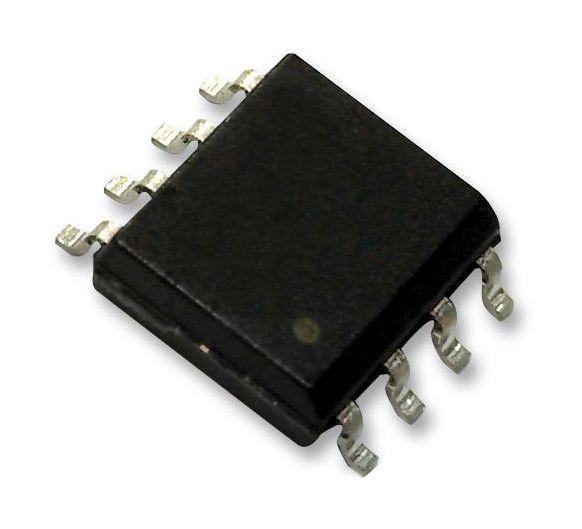

• Ambient temperature range from -40°C to +85°C, SOP-J8 package
