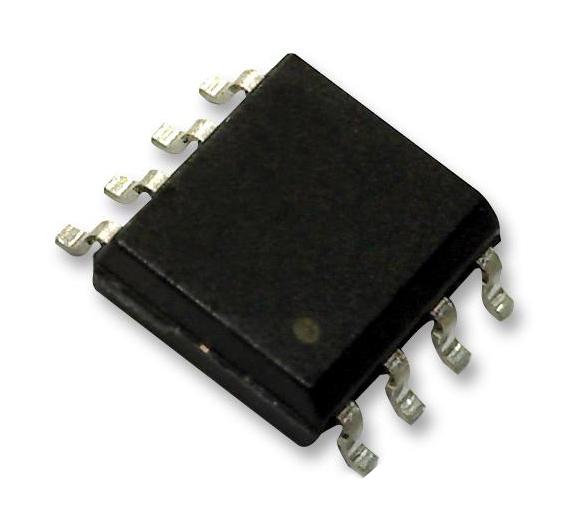

BR24G256FJ-3AGTE2
EEPROM Serial I2C 256Kbit 32K X 8 1.7V to 5.5V 8-Pin SOP-J Emboss T/R
The BR24G256FJ-3AGTE2 is a 256kB 2-wire I²C bus Electrically Erasable Programmable Read-Only Memory (EEPROM) with 1.7 to 5.5V wide Limit of operating voltage, possible fast mode 1MHz operation. It features single power source operation most suitable for battery use. It is also features all controls available by 2 ports of serial clock (SCL) and serial data (SDA) and other devices than EEPROM can be connected to the same port, saving microcontroller port.
- Page write mode useful for initial value write at factory shipment
- Self-timed programming cycle
- Low current consumption
- Prevention of write mistake
- Write (write protect) function added
- Prevention of write mistake at low voltage
- More than 1million write cycles
- More than 40 years data retention
- Noise filter built-in SCL/SDA terminal
- Initial delivery state FFh
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 40 Year | ||
| 256 Kb | ||
| Yes | ||
| SOP-J | ||
| Surface Mount | ||
| Serial I2C | ||
| I2C | ||
| Pure Tin | ||
| 260 °C | ||
| 2.5 mA | ||
| 50 ns | ||
| 32K x 8bit | ||
| Surface Mount | ||
| 8 | ||
| 1 MHz | ||
| 1.6, 5.5 V | ||
| -40 to 85 °C | ||
| 85 °C | ||
| -40 °C | ||
| 32K x 8 | ||
| 8SOP-J | ||
| 8 | ||
| 4.9 x 3.9 x 1.375 mm | ||
| 256Kbit I2C Serial EEPROM | ||
| 1.7 to 5.5 V | ||
| No | ||
| Industrial | ||
| SOP-J | ||
| 5.5 V | ||
| 1.7 V |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8542320051 |
| Schedule B: | 8542320050 |
Factory Lead Time:
