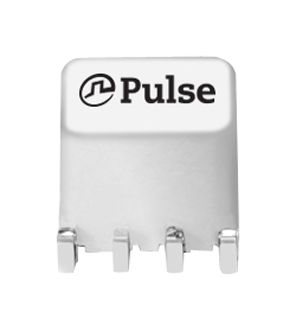

P0544NLT
Isolation Transformer, 3.3 mH, Turns Ratio 1:1:1
_web.png "P0544NLT"){kind=logo}
Manufacturer:Pulse Electronics
Product Category:
Transformers, Pulse Transformers
Avnet Manufacturer Part #: P0544NLT
Secondary Manufacturer Part#: P0544NLT
-
RoHS 10 Compliant -
Tariff Charges
- >1500VDC isolation between Gate and Drive
- Basic insulation (1.4mm creepage/clearance) and functional available
- Operating frequency: 50kHz and up
- Primary Inductance 3300 µH
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 1.6 Ohm | ||
| 1.6 Ohm | ||
| 0.7 uH | ||
| Surface Mount | ||
| -40 to 130 °C | ||
| 45.1 Vus | ||
| 3300 uH | ||
| 9.02 x 8.64 x 7.62 mm | ||
| Gate Drive Transformer | ||
| 1:1:1 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
