QSE113
Plastic Silicon Infrared Phototransistor. ONSSPCISTNJZ8E4V;
Click image to enlarge
Manufacturer:onsemi
Product Category:
Optoelectronics, Infrared - IR Components, Phototransistors
Avnet Manufacturer Part #: QSE113
Secondary Manufacturer Part#: QSE113
-
RoHS 10 Compliant -
Tariff Charges

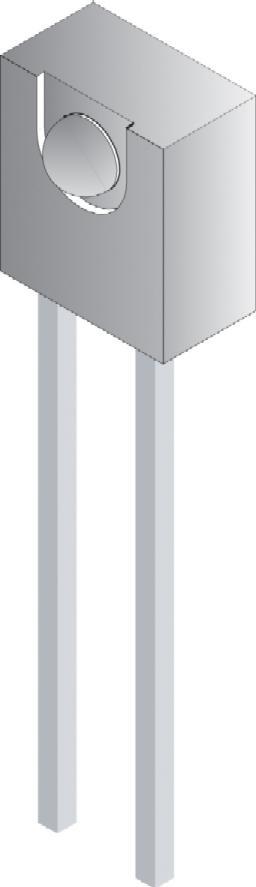

The QSE113 is a NPN silicon infrared phototransistor encapsulated in black plastic sidelooker package.
- Daylight filter
- High sensitivity
- Blue dot marking on the top side
- Power dissipation of 100mW
- Operating temperature range from -40°C to 100°C
- Peak sensitivity of 880nm
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Matte Tin | ||
| Black Transparent | ||
| 1.65 mm | ||
| Domed | ||
| 260 | ||
| 5 mA | ||
| 100 nA | ||
| 5 V | ||
| Through Hole | ||
| -40 to 100 °C | ||
| 2Side Looker | ||
| 880 nm | ||
| 2 | ||
| NPN | ||
| 4.44 x 2.54 x 5.08 mm | ||
| Side Looker | ||
| IR Chip | ||
| Side View |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8541407080 |
| Schedule B: | 8541407080 |
Factory Lead Time:
