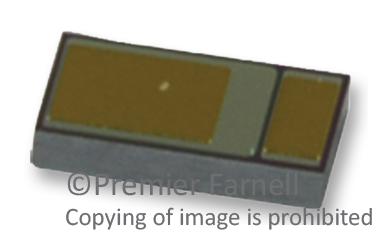

NSR20F30NXT5G
Schottky Barrier Diode, 30 V, 2.0 A, Low IR DSN2 0603 Schottky Diode 30 V 2A. ONSSPCDDEBO6N2V;
The NSR20F30NXT5G is a Schottky Barrier Diode. It is optimized for low forward voltage drop and low leakage current and are offered in a chip scale package (CSP) to reduce board space. The low thermal resistance enables designers to meet the challenging task of achieving higher efficiency and meeting reduced space requirements.
- Very low forward voltage drop (480mV at 2.0A)
- Low reverse current (20A at 10V VR)
- 665mW Power dissipation
- Very high switching speed
- Halogen-free
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 2 | ||
| DSN | ||
| Single | ||
| Surface Mount | ||
| 28 | ||
| 480 | ||
| 2 | ||
| 150 °C | ||
| 30 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
