NCV1077CSTBT3G

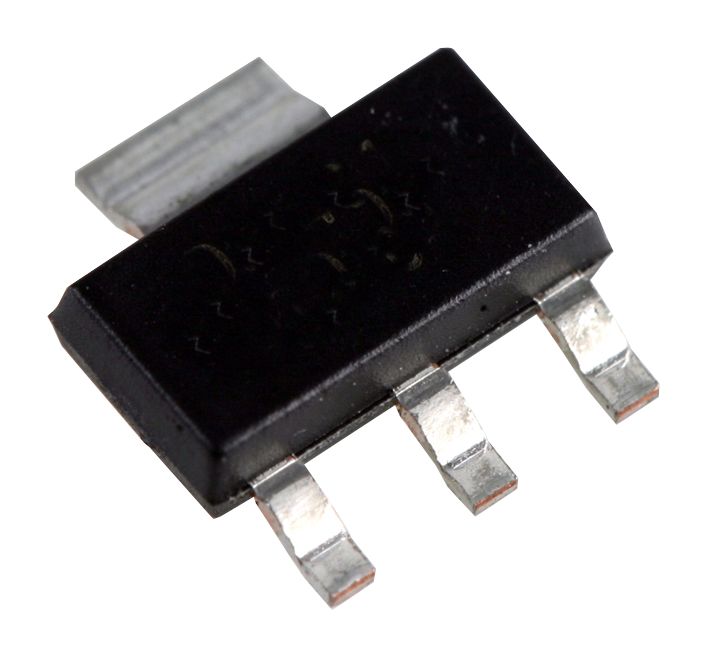

Click image to enlarge

Manufacturer:onsemi

Product Category: Power Management, Voltage Regulators, AC / DC Off Line Converters

Avnet Manufacturer Part #: NCV1077CSTBT3G

Secondary Manufacturer Part#: NCV1077CSTBT3G

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Input Voltage Max	265 Vac
	Input Voltage Min	85 Vac
	Lead Finish	Matte Tin
	Max Processing Temp	260 °C
	Maximum Duty Cycle	73 %
	Maximum Input Voltage	8.5 V
	Minimum Breakdown Voltage	670 V
	Minimum Input Voltage	7.7 V
	Mounting	Surface Mount
	MSL Level	MSL 3 - 168 hours
	No. of Pins	4
	Number of Outputs	1
	Operating Temperature	-40 to 125 °C
	Operating Temperature Max	125 °C
	Operating Temperature Min	-40 °C
	Package	5SOT-223
	Pin Count	5
	Power Rating	25 W
	Power Rating Max	15 W
	Power Switch Current Rating	3.9 A
	Power Switch Voltage Rating	670 V
	Product Dimensions	6.5 x 3.5 x 1.57 mm
	Screening Level	Automotive
	Supplier Package	SOT-223
	Switching Frequency	100 kHz
	Topology	Flyback

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	null
ECCN:	EAR99
HTSN:	8536509065
Schedule B:	8536509065

In Stock : 0

Additional inventory

Factory Lead Time: 175 Weeks

Price for: Each

Quantity:

Min:4000 Mult:4000

USD $:

0+

$0.00000
