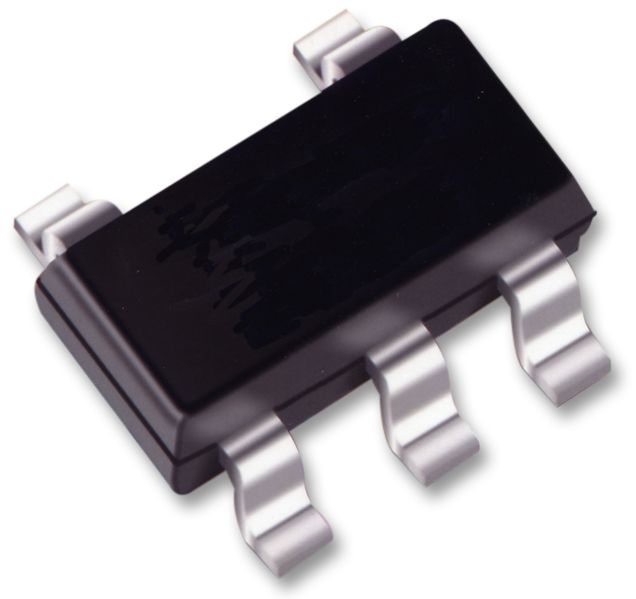

NC7SZU04AM5X
TinyLogic UHS Unbuffered Inverter. ONSSPCLGC;
NC7SZU04AM5X is a single TinyLogic UHS ultra high-speed unbuffered inverter. The special purpose unbuffered circuit design is primarily intended for crystal oscillator or analogue applications. The device is fabricated with advanced CMOS technology to achieve ultra-high speed with high output drive while maintaining low static power dissipation over a broad VCC operating range.
- Operating supply voltage range from 1.65 to 5.5V
- DC output voltage range from -0.5 to VCC + 0.5V
- Unbuffered for crystal oscillator and analogue applications
- Balanced output drive is ±16mA at 4.5V VCC
- Matches performance of LCX operated at 3.3V VCC
- Low quiescent power is ICC 2µA, VCC=5.5V, TA=25°C
- Ultra-Small MicroPak™ packages
- Maximum power dissipation in still air is 332mW
- Propagation delay is 11.7ns max (1.65V, CL=15pF, RL=1Mohm, TA=+25°C)
- SC-74A package, operating temperature range from -55 to 85°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| SC-74A | ||
| Inverter | ||
| NC7SZU | ||
| Single | ||
| 1 | ||
| 5 | ||
| 85 °C | ||
| -40 °C | ||
| 16 mA | ||
| TinyLogic UHS NC7SZU04A Series | ||
| 5.5 V | ||
| 1.65 V |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | null |
| Schedule B: | null |
