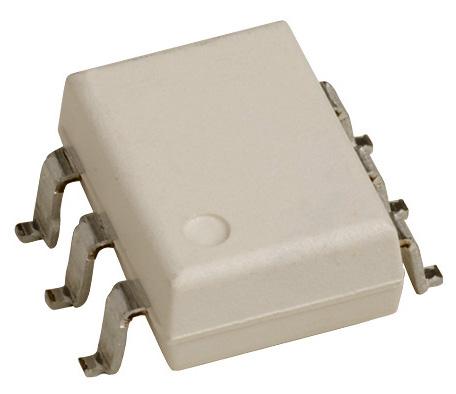

H11L1SM
Optocoupler, Digital Output, 1 Channel, 5 kV, Surface Mount DIP, 6 Pins
Click image to enlarge
Manufacturer:onsemi
Product Category:
Optoelectronics, OptoCouplers, Logic Output Photocouplers
Avnet Manufacturer Part #: H11L1SM
Secondary Manufacturer Part#: H11L1SM
-
RoHS 10 Compliant -
Tariff Charges
The H11L1SM is a 1-channel surface-mount Schmitt Trigger Optically Coupled Isolator consisting of a gallium arsenide infrared emitting diode and a microprocessor compatible Schmitt trigger output mounted. It has wide supply voltage capability, compatible with all popular logic systems.
- High data rate, 1MHz typical (NRZ)
- High common mode rejection ratio
- Fast switching
- Guaranteed on/off threshold hysteresis
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Uni-Directional | ||
| DC | ||
| Matte Tin | ||
| NAND Schmitt | ||
| 260 °C | ||
| 1 Mbps | ||
| 30 mA | ||
| 250 mW | ||
| 100 ns | ||
| Surface Mount | ||
| 1 | ||
| 1 | ||
| -40 to 85 to 85 °C | ||
| Open Collector | ||
| 6SMD DIP | ||
| 1.2 V | ||
| 6 | ||
| 8.51 x 6.35 x 3.4 mm | ||
| 6 V | ||
| Industrial | ||
| H11LXM | ||
| SMD DIP | ||
| 100 ns |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8541408000 |
| Schedule B: | 8541408000 |
