FNC42060F

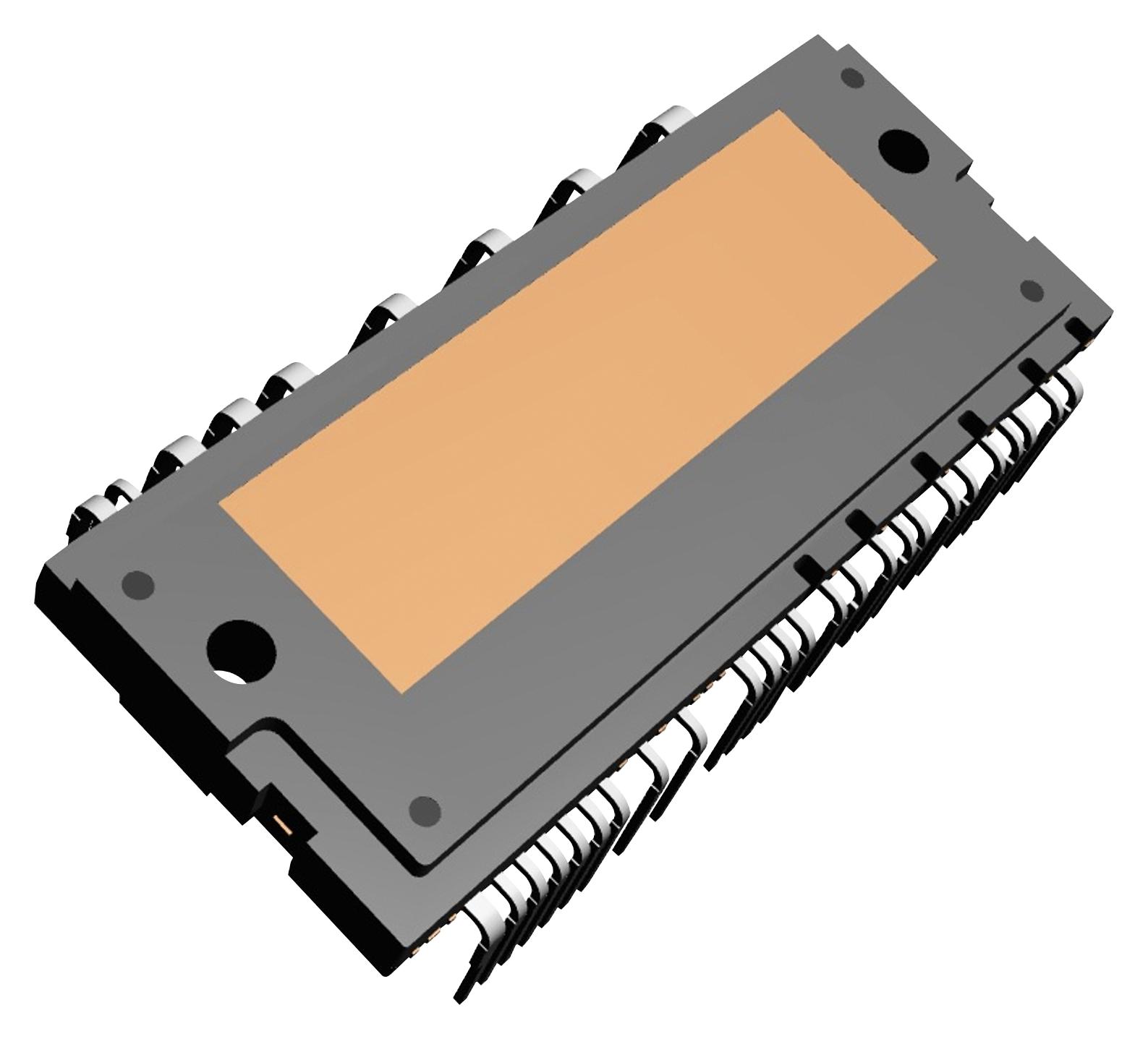

Advanced Motion SPM® 45 module in SPMAA-A26 package provides a fully-featured, high-performance inverter output stage for AC induction, BLDC and PMSM motors. This module integrate optimized gate drive of the built-in IGBTs to minimize EMI and losses, while also providing multiple on-module protection features including under-voltage lockouts, over-current shutdown, thermal monitoring and fault reporting. The built-in, high-speed HVIC requires only a single supply voltage and translates the incoming logic-level gate inputs to the high-voltage, high-current drive signals required to properly drive the module's robust short-circuit-rated IGBTs. Separate negative IGBT terminals are available for each phase to support the widest variety of control algorithms. Typical applications include motion control, home appliance / industrial motor.

• UL certified no. E209204 (UL1557)
• 600V, 20A 3-phase IGBT inverter with integral gate drivers and protection
• Low thermal resistance using ceramic substrate
• Low-loss, short-circuit rated IGBTs
• Built-in bootstrap diodes and dedicated vs pins simplify PCB layout
• Built-in NTC thermistor for temperature monitoring
• Separate open-emitter pins from low-side IGBTs for three-phase current sensing
• Single grounded power supply
• Optimized for 5KHz switching frequency
• Isolation rating of 2000Vrms / minimum
