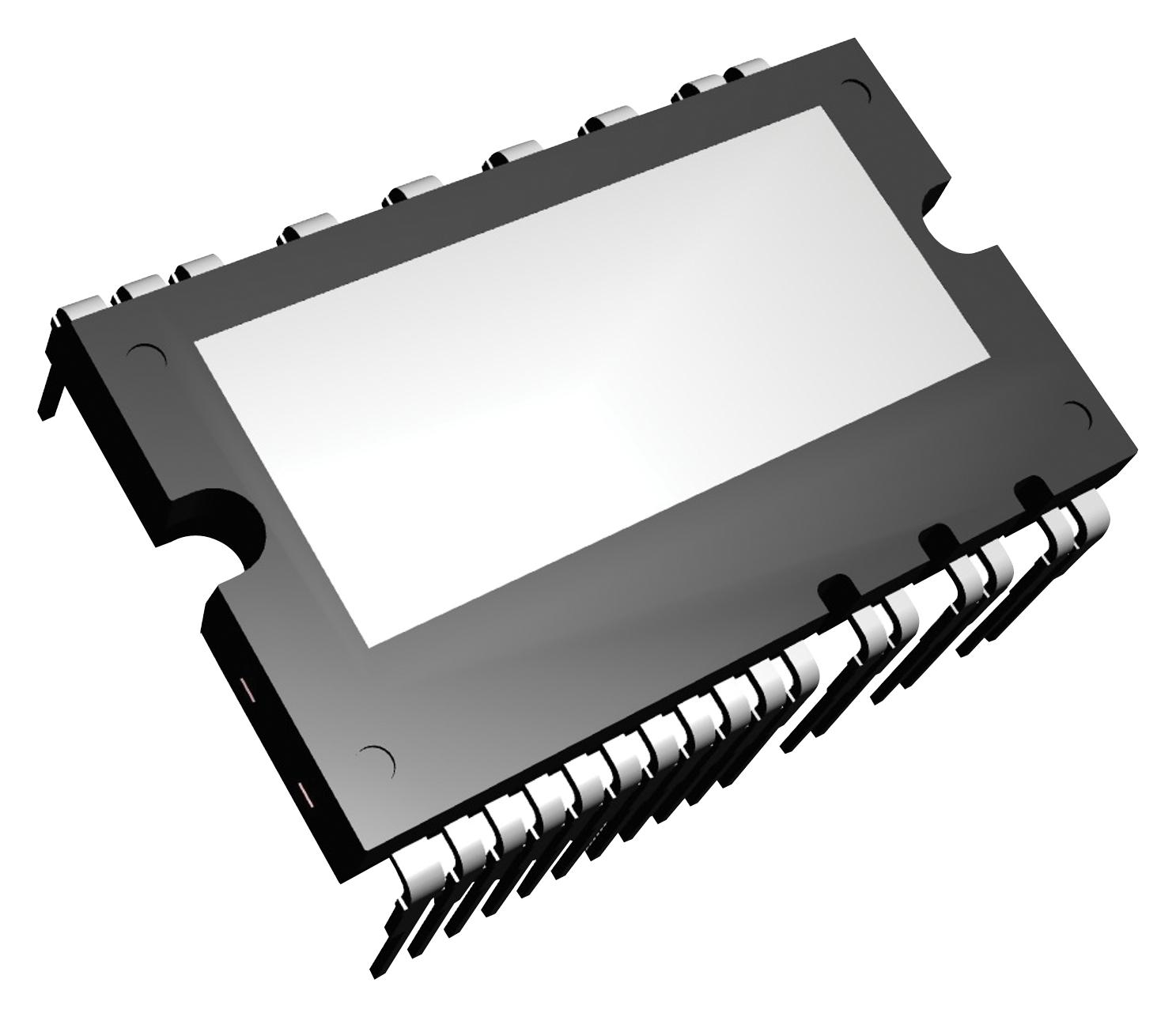

FNA41560T2
- UL Certified No. E209204 (UL1557)
- 600V - 15A 3-phase IGBT inverter with integral gate drivers and protection
- Low thermal resistance using ceramic substrate
- Low-loss, short-circuit rated IGBTs
- Built-In bootstrap diodes and dedicated Vs pins simplify PCB layout
- Built-In NTC thermistor for temperature monitoring
- Separate open-emitter pins from low-side IGBTs for three-phase current sensing
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| IGBT | ||
| 2000 V | ||
| -40 to 125 °C |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8542390001 |
| Schedule B: | 8542390000 |
Factory Lead Time:
