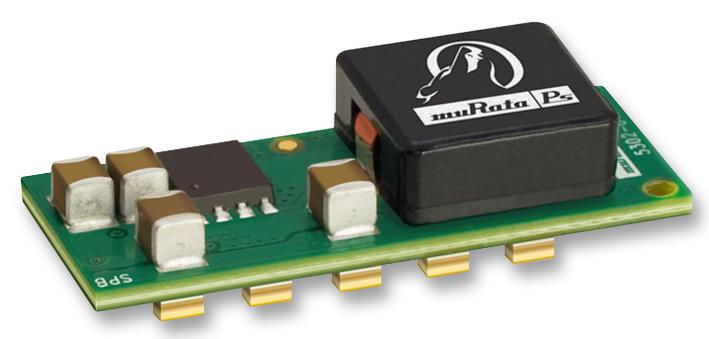

OKY2-T/16-D12P-C
Non Isolated Board Mount DC/DC Converter, DOSA, SMD, 80 W, 752 mV, 5.5 V, 16 A, 8.3 V, 14 V, Programmable
-
RoHS 10 Compliant -
Tariff Charges
The OKY2-T/16-D12P-C is a 80W surface-mount non-isolated PoL DC/DC Converter for outstanding thermal de-rating performance and wide range of input voltage from 8.3 to 14VDC. The module is fully compatible with Distributed-power Open Standards Alliance (DOSA) industry-standard specifications. Based on fixed-frequency synchronous buck converter switching topology, the high power conversion efficient Point of Load (POL) module features programmable output voltage and ON/OFF control. An optional sequence/tracking input allows controlled ramp-up and ramp-down outputs. The sense input provides remote sense. This converter also includes under-voltage lock out (UVLO), output short circuit protection, over-current and over-temperature protections.
- Non-isolated output adjustable from 0.7525 to 5.5V up to 16A
- Optional sequence/tracking operation
- Short circuit protection
- ON/OFF control
- High efficiency up to 94.5%
- Over-temperature protection
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Programmable | ||
| DOSA, SMD | ||
| 14 V | ||
| 8.3 V | ||
| -40 to 85 °C | ||
| 16 A | ||
| 16 A | ||
| 80 W | ||
| 0.7525 to 5.5 V | ||
| 5.5 V | ||
| 752 mV | ||
| Industrial & ITE | ||
| 33 mm | ||
| 33 x 13.5 x 8.4 mm | ||
| 8.4 mm | ||
| 13.5 mm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8504409580 |
| Schedule B: | 8504409580 |
Factory Lead Time:
