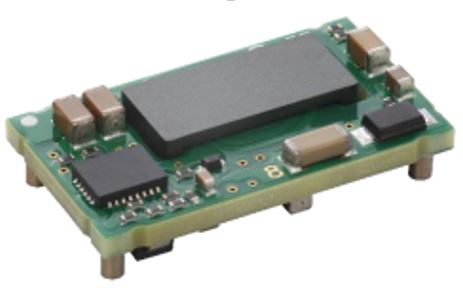

MYBSP00502ABF
Isolated Surface Mount DC/DC Converter, Industrial & ITE, 10 W, 1 Output, Fixed, 5 V, 2 A, Regulated, SMD Open Frame
Click image to enlarge
Manufacturer:Murata
Product Category:
電源, DC/DC 轉換器, 隔離式表面貼裝DC/DC轉換器
Avnet Manufacturer Part #: MYBSP00502ABF
Secondary Manufacturer Part#: MYBSP00502ABF
-
RoHS 10 Compliant -
Tariff Charges
The MYBSP01201ABF/MYBSP00502ABF is an isolated, regulated, DC-DC converter for PoE PD that has an input range of 37-57Vdc with a typical efficiency of 84%(12Vout) and 80%(5Vout). This series is ideal for IEEE 802.3af compliant devices with input undervoltage lockout and output current limit safety features. This series also has detection and classification for compliant IEEE802.3af.
- Support IEEE802.3af class0
- Surface mount module
- 2250VDC input-output isolation
- Operating temperature range from -40 to +85°C
- Module has self-protection features
- Include input undervoltage lockout and output current limit
- 80% efficiency (typ)
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Fixed | ||
| SMD Open Frame | ||
| 57 V | ||
| 37 V | ||
| 48 V | ||
| 2.25 kV | ||
| 1 | ||
| 2 A | ||
| 10 W | ||
| Regulated | ||
| 5 V | ||
| Industrial & ITE | ||
| 26 mm | ||
| 6.2 mm | ||
| 14.8 mm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8504409580 |
| Schedule B: | null |
Factory Lead Time:
