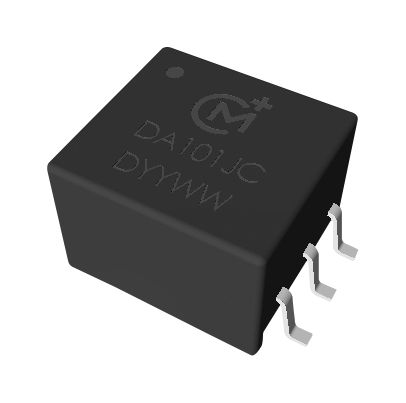

DA101JC-R
Audio Transformer, 1 to 2.2mH, 1:1, 2 kV
Manufacturer:Murata
Product Category:
Transformers, Audio Transformers
Avnet Manufacturer Part #: DA101JC-R
Secondary Manufacturer Part#: DA101JC-R
-
RoHS 10 Compliant -
Tariff Charges
DA101JC-R is a DA100J series surface mount transformer for digital audio data transmission. The digital audio range of transformers is designed to improve the balance of transmitter and receiver circuitry in Hi-Fi equipment, video games and other applications requiring high-performance digital audio transmission. Compliant with AES/EBU recommendations for the digital audio interface, offering optimized shunt capacitance between primary and secondary windings. Capable of operating over the audio data rate frequency range, providing isolation from 50-60Hz noise.
- 6 Pin SM package and compatible with leading chip sets
- 2KVrms isolation
- Industry-standard pinout
- UL 94 V-0 package materials
- Low profile
- Suitable for both 75 & 110 ohm circuits
- Toroidal construction
- Operating free air temperature range -40°C to +85°C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 2000 Vrms | ||
| Gull wing | ||
| Surface Mount | ||
| -40 to 85 °C | ||
| 9 x 12.7 x 6.65 mm | ||
| Digital Audio Data Transmission Transformer | ||
| 1:1 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8504409580 |
| Schedule B: | 8504409580 |
