0473460001
Conn Micro USB Type B Receptacle 5 POS 0.65mm RA Surface Mount 1 Port

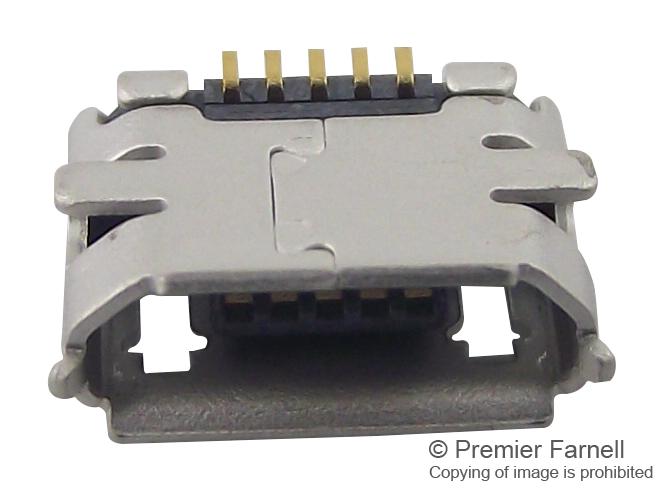

Click image to enlarge
Manufacturer:Molex
Product Category:
Connectors, I/O Connectors, USB Connectors
Avnet Manufacturer Part #: 0473460001
Secondary Manufacturer Part#: 0473460001
-
RoHS 10 Compliant -
Tariff Charges
47346-0001 is a 47346 series, fully shielded, Micro-USB B receptacle with flange.
- 1.8A, 1.0A maximum per contact current and 30VAC (RMS) maximum voltage
- UL E107635 approved and 94V-0 flammability
- High temperature thermoplastic black resin
- 1000 durability (mating cycles max), 5 circuits (loaded)
- C
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| LCP (Liquid Crystal Polymer) | ||
| Right Angle | ||
| Copper Alloy | ||
| Gold | ||
| Receptacle | ||
| Gold | ||
| 260 °C | ||
| Surface Mount | ||
| 5 | ||
| 1 | ||
| -20 to 85 °C | ||
| 0.6500 mm | ||
| 5.43 mm | ||
| 7.8 x 5.43 x 2.94 mm mm | ||
| 2.94 mm | ||
| 7.8 mm | ||
| 47346 | ||
| Micro USB Type B | ||
| USB2.0 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8537109170 |
| Schedule B: | 8536904000 |
Factory Lead Time:
