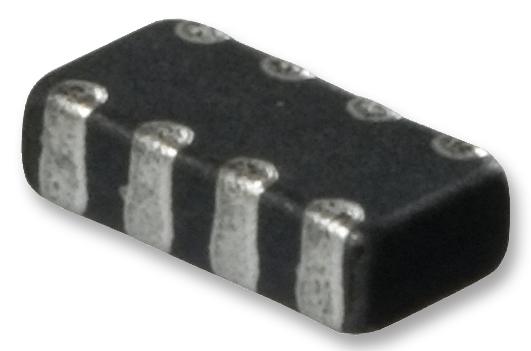

DA1206D301R-10
Ferrite Bead, 1206 [3216 Metric], 300 ohm, 400 mA, DA Series, 0.4 ohm
Click image to enlarge
Manufacturer:Laird Technologies
Product Category:
Ferrites, Ferrite Beads
Avnet Manufacturer Part #: DA1206D301R-10
Secondary Manufacturer Part#: DA1206D301R-10
-
RoHS 10 Compliant -
Tariff Charges
The multi-line array surface mount ferrite chips provide compact cost effective EMI filtering for densely packed PCB designs. Four line arrays require approximately the same board space as only three discrete parts. Our proprietary SMT construction yields rugged components with a broad range of performance characteristics.
- Up to 10 Amps (I MAX) continuous operating capability
- Monolithic construction with small footprint and high reliability
- Excellent retention under bias
- Economical
- Broad range of sizes (from EIA 0201 up to 3312)
- For power line, low frequency and high frequency signal lines
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 400 mA | ||
| 400 mOhm | ||
| 1206 [3216 Metric] | ||
| Surface Mount | ||
| 300 Ohm | ||
| 125 °C | ||
| -55 °C | ||
| 0.8 mm | ||
| 3.2 mm | ||
| DA Series | ||
| 1.6 mm |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
