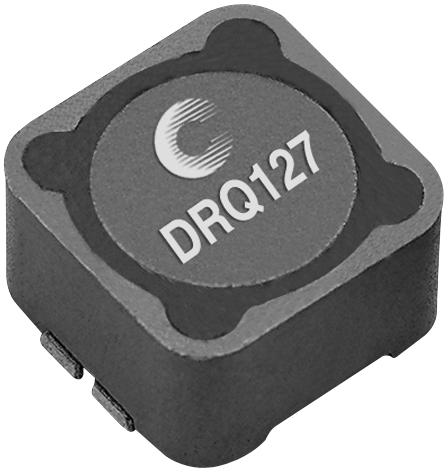

DRQ127-4R7-R
Inductor, Coupled, 4.7 uH, 9.17 Milliohm, 8.25 A, 12.5mm x 12.5mm x 8mm
The DRQ127-4R7-R is a surface mount Shielded Inductor/Transformer with four sizes of shielded drum core. This DRQ series dual winding inductor can be used as either a single inductor or in coupled inductor/transformer applications (1:1 turns ratio). Windings can be connected in series or parallel, offering a broad range of inductance and current ratings. It supports ±20% inductance tolerance.
- High power
- J-STD-020D compliant solder reflow temperature
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| 9.17 | ||
| 4.7 | ||
| Surface Mount | ||
| 125 °C | ||
| -40 °C | ||
| 8 mm | ||
| 12.5 mm | ||
| DRQ Series | ||
| 12.5 mm | ||
| 8.25 | ||
| 16.5 | ||
| 1:1 |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
