DMP6023LFG-7

DMP6023LFG-7 is a P-channel enhancement mode MOSFET. This MOSFET is designed to minimize the on-state resistance (RDS(ON)) and maintain superior switching performance, making it ideal for high efficiency power management applications. Typical applications include backlighting, power management functions, DC-DC converters.

• Low RDS(ON) – ensures on state losses are minimized
• Small form factor thermally efficient package enables higher density end products
• Drain-source voltage is -60V at TA = +25°C
• Gate-source voltage is ±20V at TA = +25°C
• Continuous drain current is -7.7A at TA = +25°C, VGS = -10V, steady state
• Pulsed drain current (10µs pulse, duty cycle = 1%) is -55A at TA = +25°C
• Total power dissipation is 1W at TA = +25°C
• Static drain-source on-resistance is 25mohm max at VGS = -10V, ID = -5A, TA = +25°C

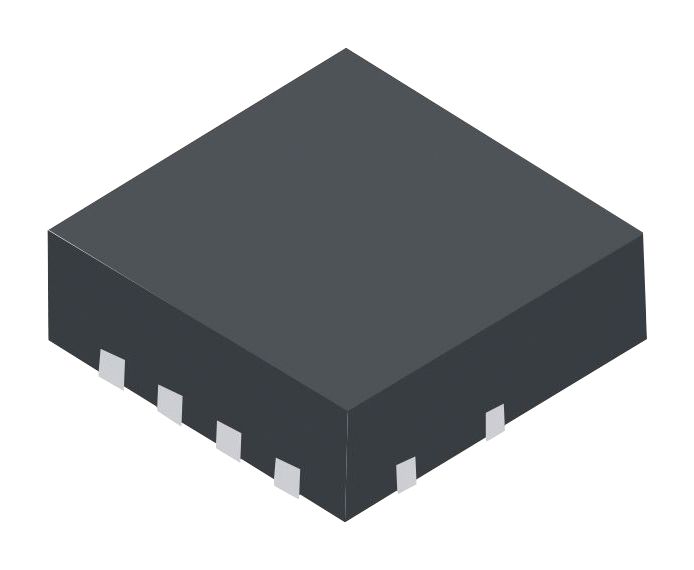

• POWERDI3333-8 case
• Operating and storage temperature range from -55 to +150°C
