DMN2300UFB4-7B

Name: DMN2300UFB4-7B
Brand: Diodes Incorporated
SKU: DMN2300UFB4-7B
Availability: InStock

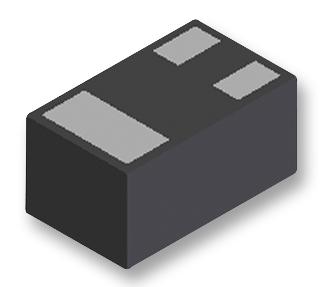

Click image to enlarge

Manufacturer:Diodes Incorporated

Product Category: Discretes, FETs, Single MOSFETs

Avnet Manufacturer Part #: DMN2300UFB4-7B

Secondary Manufacturer Part#: DMN2300UFB4-7B

RoHS 10 Compliant
Tariff Charges

Description

Technical Attributes

Find Similar Parts

	Description	Value
	Channel Type	N Channel
	Continuous Drain Current Id	1.3
	Drain Source On State Resistance	175
	Drain Source Voltage Vds	20
	Gate Source Threshold Voltage Max	950
	No. of Pins	3
	Operating Temperature Max	150 °C
	Power Dissipation	500
	Transistor Case Style	X2-DFN1006
	Transistor Mounting	Surface Mount

ECCN / UNSPSC / COO

Description	Value
Country of Origin:	null
ECCN:	EAR99
HTSN:	PARTS...
Schedule B:	PARTS...

In Stock : 0

Additional inventory

Factory Lead Time: 84 Weeks

Price for: Each

Quantity:

Min:10000 Mult:10000

USD $:

$0.00000
