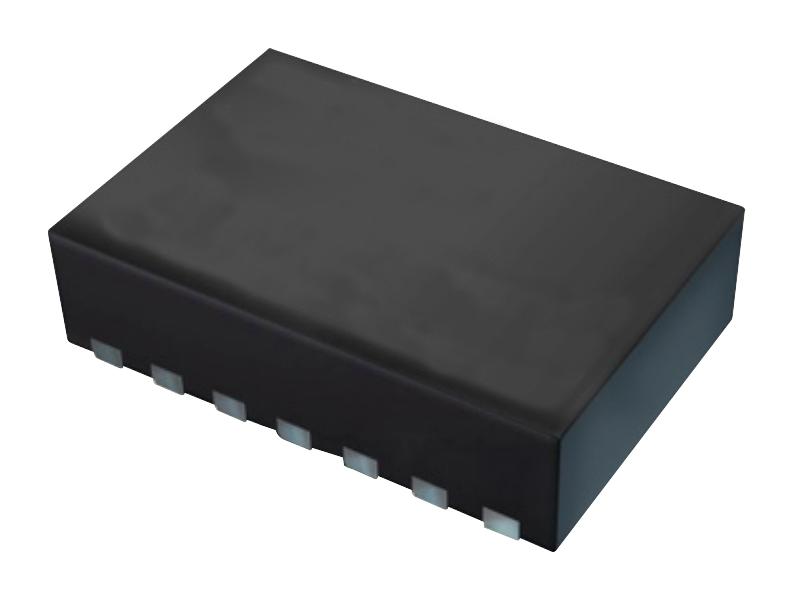

AP22966DC8-7

AP22966 is an integrated dual N-channel load switch which features an adjustable slew rate that can be set using an external capacitor independently for each channel. The N-Channel MOSFETs have a typical RON of 18mO, enabling current handling capability of up to 6A. Both channels can independently be controlled with low voltage logic signals.AP22966 is designed to operate from 0.8V to 5.5V. The low quiescent supply current makes it ideal for use in battery powered distribution systems where power consumption is a concern.AP22966 is available in a standard Green V-DFN3020-14 package with exposed PAD for improved thermal performance and is RoHS compliant.

• Integrated Dual Channel Load Switch
• 0.8V to 5.5V Input Voltage Range
• Low Typical RON of 18mO (VBIAS = 5V)
• 6A Maximum Continuous Current per Channel
• Very Low Quiescent Current
  • 60µA (Both Channels)
  • 45µA (Single Channel)
• Per Channel Adjustable Slew Rate
• Internal Quick Output Discharge (QOD)
• Low Voltage Logic Enable
  • 1.2/1.8/2.5/3.3V Logic
• Small Form Factor Package V-DFN3020-14
  • footprint of just 6mm2
• Thermally Efficient Low Profile Package
• Totally Lead-Free & Fully RoHS Compliant
• Halogen and Antimony Free. “Green” Device
