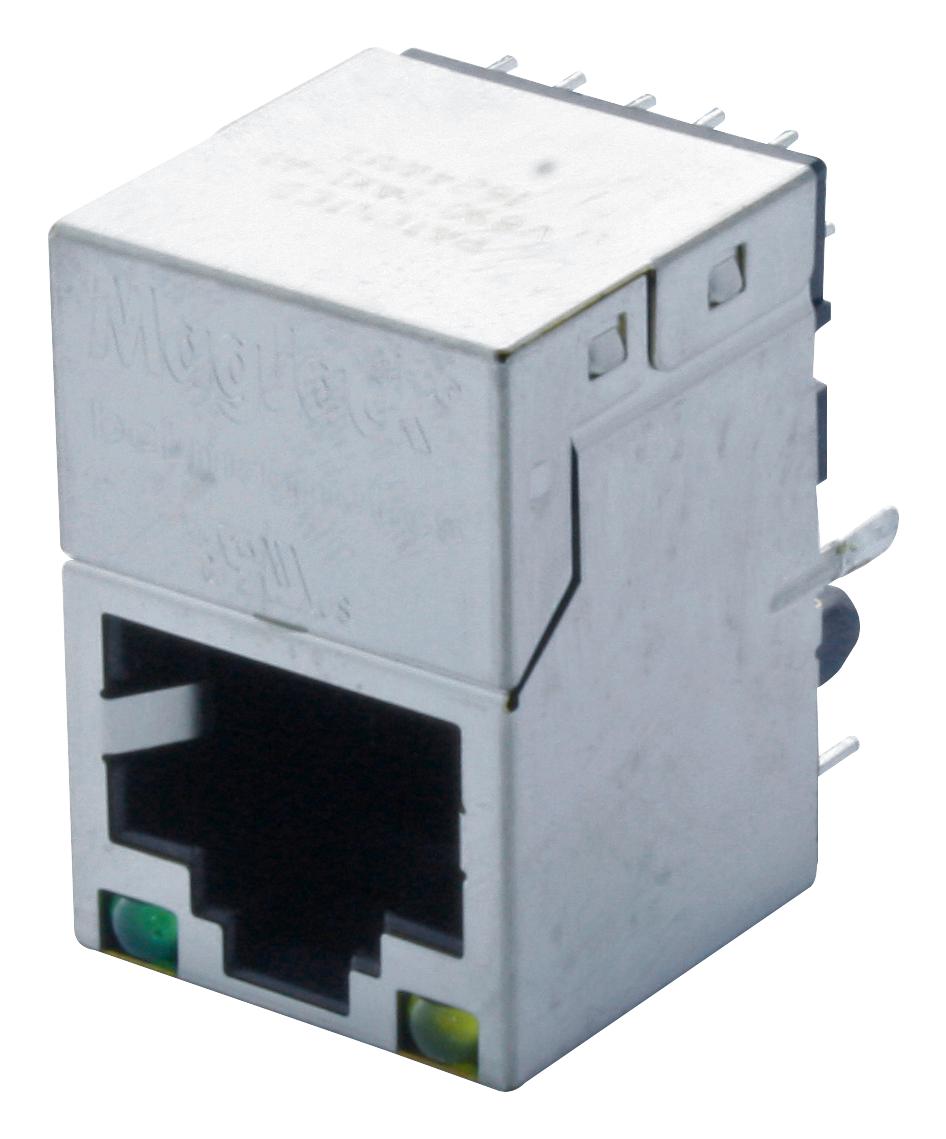

V890-1AX1-A1
Conn RJ45 Receptacle 8 POS Solder ST Through Hole 14 Terminal Single Port Tray
Click image to enlarge
Manufacturer:BEL
Product Category:
Connectors, RJ - Registered Jack Connectors
Avnet Manufacturer Part #: V890-1AX1-A1
Secondary Manufacturer Part#: V890-1AX1-A1
-
RoHS 10 Compliant -
Tariff Charges
V890-1AX1-A1 is a vertical mount series single port RJ45 MagJack® ICM. Suitable applications include single-board motherboards, industrial PCs, printers, daughter cards, industrial controllers and any applications requiring a vertical mount Ethernet connector, where board space is a premium. It is ideal for next generation 5G cellular and wireless access point applications. Typical applications include single-board motherboards, industrial controllers, industrial PCs, daughter cards and printers.
- 1GBASE-T speed
- Comes with LED
- Operating temperature range from 0°C to 70°C
- Available with POE compatibility
- Can carry 720mA of current at 57 VDC continuous
- UL recognized
- Forward compatible to 2.5G, 5G and 10G
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| PBT (Polybutylene Terephthalate) | ||
| Straight | ||
| Gold | ||
| Receptacle | ||
| Tin | ||
| 260 | ||
| Through Hole | ||
| 2.5400 mm | ||
| 23.11 mm | ||
| 15.9 x 23.11 x 16.56 mm | ||
| 16.56 mm | ||
| 15.9 mm | ||
| Solder |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
