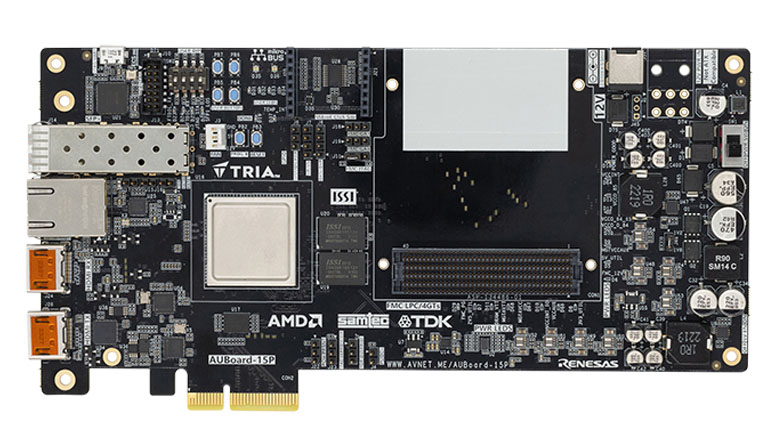

AES-AUB-15P-DK-G

AES-AUB-15P-DK-G is an AUBoard 15P FPGA dev board with AMD AU+ FPGA. AUBoard 15P provides the flexibility and versatility for engineers to experiment with and learn the AMD Artix UltraScale+ ™ architecture. The feature rich AU15P device features 170K programmable logic cells and 12 GTH multi-gigabit transceivers as well as 576 DSP slices and 7.6Mb of on-chip RAM. The board also features 2GB of ISSI DDR4 and non-volatile configuration and boot from the 512Mb of ISSI QSPI Flash. A Microchip PHY enables the 10/100 Ethernet interface. A microUSB port provides on-board JTAG/UART access. A Renesas clock generator and ECS crystal oscillators provide clocking to the AU15P device, GTH transceivers, JTAG, and communication interfaces. A combination of slide switches, push buttons, and LEDs (red and RGB) allow user interaction with the board. Target applications include embedded vision, embedded processing, wired communications, prototyping & experimentation, industrial networking.

• AMD Xilinx Artix UltraScale+ 15P FPGA (170K logic cells, 12 GTH transceivers, 7.6Mb on-chip)
• ISSI 2GB DDR4 memory, ISSI 512Mb QSPI flash memory (configuration and boot)
• Microchip 10/100 MII wired Ethernet PHY and MAC ID EEPROM
• Renesas and TDK power devices
• On-board JTAG and UART debug interface
• STMicroelectronics temperature sensor
• Expansion with 1 Click site and FMC LPC enabled by Samtec connector
• User RGB and monochrome LEDs, user slide and push button switches
• HDMI 2.0 Rx & Tx, SFP+ 10Gb Ethernet
• PCIe Gen. 4 x4 end point interface
