MUSB-K152-30
USB Sealed Connector, Micro USB Type AB, USB 2.0, Receptacle, 5 Position, Through Hole Mount

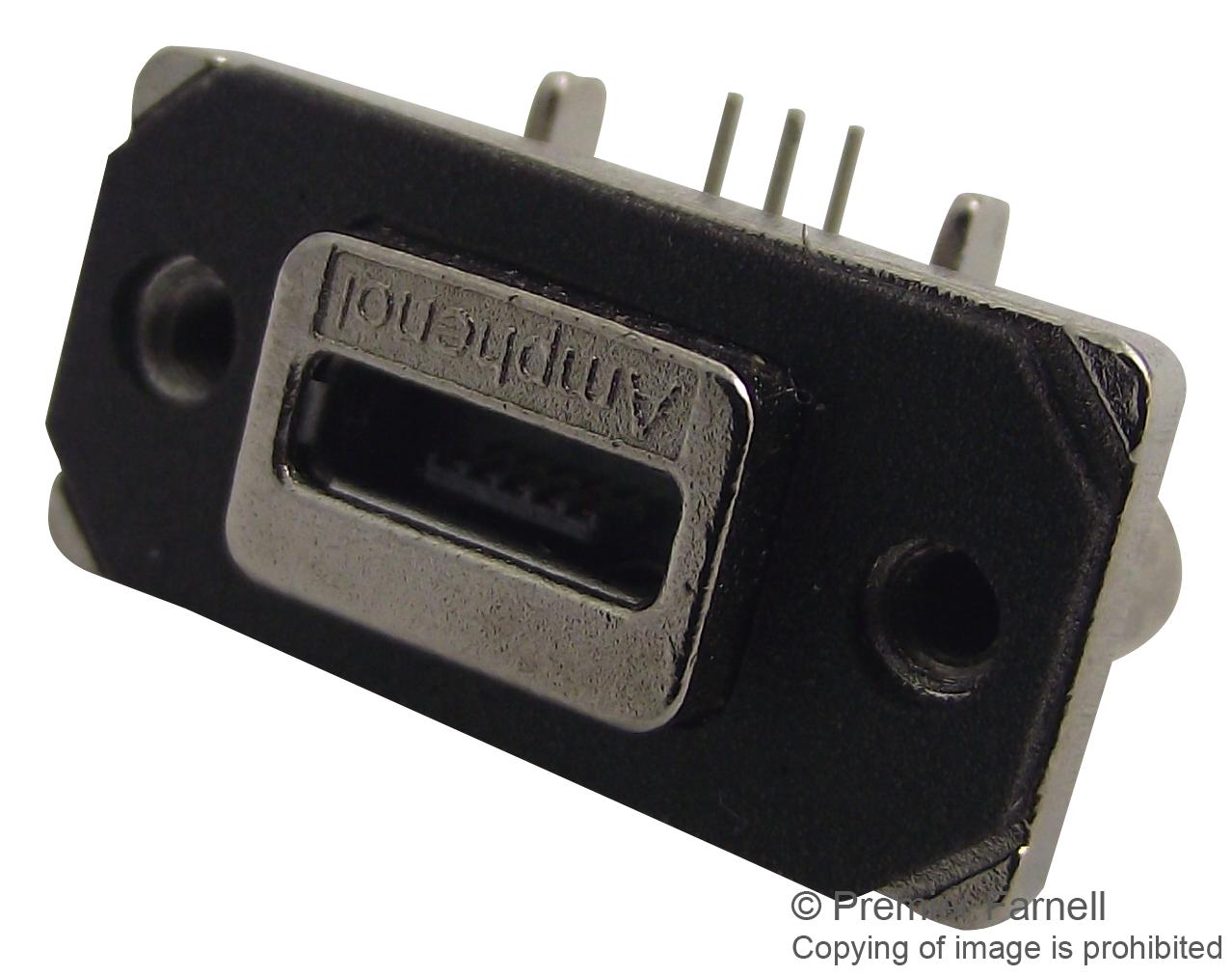

The MUSB-K152-30 is a right angle PCB mount rugged micro-AB USB Receptacle with gold-plated copper alloy contacts and a UL94V-0 flammability-rated engineering thermoplastic housing. The MUSB series unique and innovative USB connector design provides the ideal solution for data transfer in harsh or demanding environments. Environmental performance per IEC 60529 code IP67 for seal between mating area and PCB side of connector. Gasket provides seal to inside face of enclosure panel.
- Nickel-plated die-cast zinc alloy outer shell
- 30mO Maximum contact resistance
- -40 to +105°C Operating temperature range
- With rear shield
Technical Attributes
Find Similar Parts
| Description | Value |
|---|
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | 8536694040 |
| Schedule B: | 8536694040 |
Factory Lead Time:
