62684-401100ALF
FFC / FPC Board Connector, 0.5 mm, 40 Contacts, Receptacle, FCI OPU, Surface Mount, Bottom

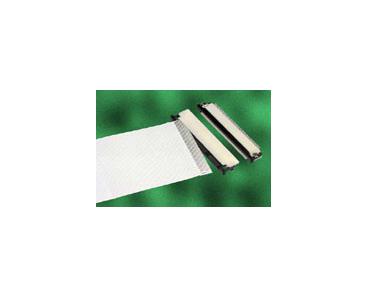

Click image to enlarge
Manufacturer:Amphenol
Product Category:
Connectors, FFC-FPC Connectors
Avnet Manufacturer Part #: 62684-401100ALF
Secondary Manufacturer Part#: 62684-401100ALF
-
RoHS 10 Compliant -
Tariff Charges
The 62684-401100ALF is a FFC/FPC Connector features lower side contact and right angle orientation. The 62684-401100ALF has UL94V-0 glass reinforced black slider and gold flash plated phosphor bronze contact.
- Glass-filled Thermoplastic (UL94V-0) Housing and Slider
- Gold over Nickel-plated Phosphor Bronze Contact
- 0.5A AC/DC Current Rating
- 50VAC/DC Voltage Rating
- 100MΩ Minimum Insulation Resistance
- 30mΩ Maximum Contact Resistance
Technical Attributes
Find Similar Parts
| Description | Value | |
|---|---|---|
| Thermoplastic | ||
| Right Angle | ||
| Socket | ||
| Phosphor Bronze | ||
| Gold | ||
| Beige | ||
| 260 | ||
| Surface Mount | ||
| -55 to 85 °C | ||
| 0.5000 mm | ||
| 5 mm | ||
| 25.5 x 5 x 2 mm | ||
| 2 mm | ||
| 25.5 mm | ||
| Solder |
ECCN / UNSPSC / COO
| Description | Value |
|---|---|
| Country of Origin: | null |
| ECCN: | EAR99 |
| HTSN: | PARTS... |
| Schedule B: | PARTS... |
Factory Lead Time:
